    - SS14-23

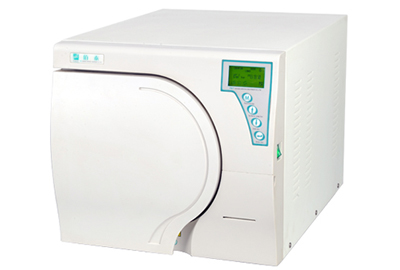

    SS14-23

    23 Liters Autoclave Sterilizer

    European Class B  23L





    LCD display





    Build-in printer





    Automatic electronic lock





    Automatic distilled water refilling



    Automatic Sterilizer
    Functional Character:
    □ Advanced steaming pressure way of sterilization recognized internationally.
    □ Operating menus convenience，consumer may setup day, time etc.

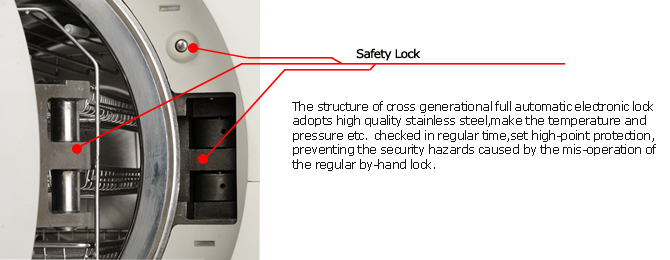

    □ The structure of CROSS generational full automatic electronic lock.
    □ Deep-stretched shape high quality stainless steel internal bladder.
    □ High-luminance liquid crystal display .
    □ Built-in temperature sensing printing，and equipped with pc interface，operating with remote maintenance.
    □ Setup warm-up key, in order to keep room of sterilization temperature around 70℃.
    □ Built-in and set by itself procedure of antisepsis，and the range of the antisepsis is wide .
    □ Built-in cleaning and sewage equipment .
    □ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.
    Application Range:
    Pressurized steam sterilizer is mainly applied to operating room．Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation．instruments of Stomatological Department,dressing, glassware, injecting apparatus.



        Liters Autoclave Sterilizer

    Room of Sterilization
    Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.



     Liters Autoclave Sterilizer

    Tray Rack
    The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.

     Liters Autoclave Sterilizer

    System Of The Printing
    Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.



    Liters Autoclave Sterilizer





    Quick Release Coupling
    The two quick release coupling in the front make the drainage and watering easy.

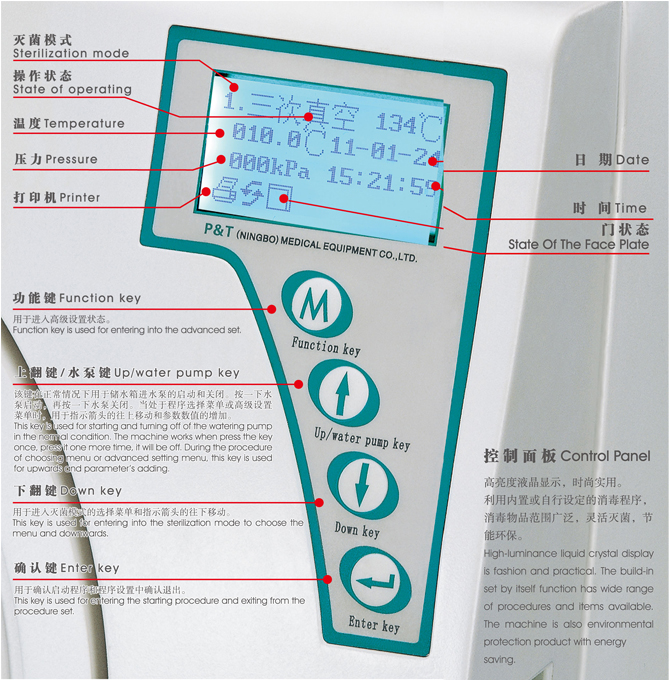

    Control System

    The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization

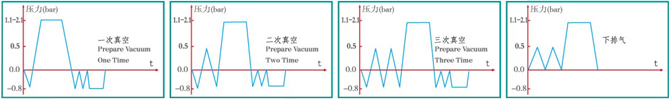

    Circulat Chart of Sterilizer Machine:

    Liters Autoclave Sterilizer

    Liters Autoclave Sterilizer





    Parameters:



    Voltage Rating and Frequency

    AC220V, 50～60Hz

    Input Power

    2000W

    Sterilization Temperature

    121℃/134℃ (Customer Definition 105℃ ~ 134℃)

    Operating Environment Temperature

    5℃～40℃

    Room of Sterilization(Diameter×Depth)

    250mm×450mm

    Volume

    23 L

    Overall Dimension(L×W×H)

    475mm × 443mm × 632mm

    Net Weight

    57kg

    Choosing Build-in Printer

     Yes
    Choosing USB Interface

     Yes




    - SS14B-17
    SS14B-17

    Steam Sterilizer

    European Class B  17L





    LCD display





    Build-in printer





    Top-designed Reservoir



    SS14B-17 Steam Sterilizer

    SS14B-17 Steam Sterilizer

    Automatic Sterilizer

    Functional Character:

    □ Advanced steaming pressure way of sterilization recognized internationally.
    □     Operating menus convenience，consumer may setup day, time etc.
    □     Deep-stretched shape high quality stainless steel internal bladder.
    □     High-luminance liquid crystal display .
    □     Built-in temperature sensing printing，and equipped with pc interface，operating with remote maintenance.
    □     Setup warm-up key, in order to keep room of sterilization temperature around 70℃.
    □     Built-in and set by itself procedure of antisepsis，and the range of the antisepsis is wide .
    □     Built-in cleaning and sewage equipment .
    □ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.

    Application Range:

    Pressurized steam sterilizer is mainly applied to operating room．Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation．instruments of Stomatological Department,dressing, glassware, injecting apparatus.







    Room of Sterilization

    Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.





    Tray Rack

    The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.



    System Of The Printing

    Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.


    Top-designed Reservoir

    Open seservoir, convenient for water-refilling and cleanning The reservoir is enliarged, making it avaiable for 20 cycles use









    Quick Release Coupling

    The two quick release coupling in the front make the drainage and watering easy.









    Control System

    The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization





     Instruction of the Operational Mode:



    Pre-set procedure

    Tem
    (℃)

    Pressure
    (bar)

    Time of sterilization
    (Min)

    Working total time (Min)

    Loading

    Maximum loading
    (kg)

    1

    Prepare Vacuum three times
    134℃ Porous

    134

    2.1

    4

    35～45

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    2

    Prepare Vacuum three times
    121℃ Porous

    121

    1.0

    20

    50～60

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    3

    Prepare Vacuum one times
    134℃ Hollow

    134

    2.1

    4

    25～35

    Un-packed half-solid equipment

    6.00

    4

    Prepare Vacuum one times
    134℃ Solid

    134

    2.1

    4

    20～30

    Un-packed solid equipment

    6.00

    5

    Prepare Vacuum one times
    134℃ Solid

    121

    1.0

    20

    35～45

    Un-packed solid equipment

    6.00

    6

    Customer definition

    105-134



    4-40







    7

    Prepare Vacuum three times
    134℃ Prion

    134

    2.1

    18

    45～60

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    8

    Prepare Vacuum three times
    Customer definition

    126
    （105-134）

    -

    12
    （1-40）

    Dryness time 15 minutes(3-25min)

    -

    9*

    B-D Test

    Applied to Performance Test

    10*

    Leak Test

    Applied to Performance Test





    Parameters:



    Voltage Rating and Frequency

    AC220V, 50～60Hz

    Input Power

    1800W

    Sterilization Temperature

    121℃/134℃ (Customer Definition 105℃ ~ 134℃)

    Operating Environment Temperature

    5℃～40℃

    Room of Sterilization(Diameter×Depth)

    250mm×350mm

    Volume

    17 L


    - SS14B-23
    SS14B-23

    Steam Sterilizer

    European Class B  23L

    LCD display

    Build-in printer

    Top-designed Reservoir



    SS14B-23 Steam Sterilizer

    SS14B-23 Steam Sterilizer

    Automatic Sterilizer

    Functional Character:

    □ Advanced steaming pressure way of sterilization recognized internationally.
    □     Operating menus convenience，consumer may setup day, time etc.
    □     Deep-stretched shape high quality stainless steel internal bladder.
    □     High-luminance liquid crystal display .
    □     Built-in temperature sensing printing，and equipped with pc interface，operating with remote maintenance.
    □     Setup warm-up key, in order to keep room of sterilization temperature around 70℃.
    □     Built-in and set by itself procedure of antisepsis，and the range of the antisepsis is wide .
    □     Built-in cleaning and sewage equipment .
    □ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.

    Application Range:

    Pressurized steam sterilizer is mainly applied to operating room．Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation．instruments of Stomatological Department,dressing, glassware, injecting apparatus.







    Room of Sterilization

    Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.





    Tray Rack

    The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.



    System Of The Printing

    Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.


    Top-designed Reservoir

    Open seservoir, convenient for water-refilling and cleanningThe reservoir is enliarged, making it avaiable for 20 cycles use









    Quick Release Coupling

    The two quick release coupling in the front make the drainage and watering easy.









    Control System

    The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization





     Instruction of the Operational Mode:



    Pre-set procedure

    Tem
    (℃)

    Pressure
    (bar)

    Time of sterilization
    (Min)

    Working total time (Min)

    Loading

    Maximum loading
    (kg)

    1

    Prepare Vacuum three times
    134℃ Porous

    134

    2.1

    4

    35～45

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    2

    Prepare Vacuum three times
    121℃ Porous

    121

    1.0

    20

    50～60

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    3

    Prepare Vacuum one times
    134℃ Hollow

    134

    2.1

    4

    25～35

    Un-packed half-solid equipment

    6.00

    4

    Prepare Vacuum one times
    134℃ Solid

    134

    2.1

    4

    20～30

    Un-packed solid equipment

    6.00

    5

    Prepare Vacuum one times
    134℃ Solid

    121

    1.0

    20

    35～45

    Un-packed solid equipment

    6.00

    6

    Customer definition

    105-134



    4-40







    7

    Prepare Vacuum three times
    134℃ Prion

    134

    2.1

    18

    45～60

    Un-packed multi-loop equipment

    1.00

    Packed textile

    0.65

    One-layer packing solid or vacancy substances

    3.00

    Double-layer packing solid or vacancy substances

    1.50

    8

    Prepare Vacuum three times
    Customer definition

    126
    （105-134）

    -

    12
    （1-40）

    Dryness time 15 minutes(3-25min)

    -

    9*

    B-D Test

    Applied to Performance Test

    10*

    Leak Test

    Applied to Performance Test





    Parameters:



    Voltage Rating and Frequency

    AC220V, 50～60Hz

    Input Power

    1800W

    Sterilization Temperature

    121℃/134℃ (Customer Definition 105℃ ~ 134℃)

    Operating Environment Temperature

    5℃～40℃

    Room of Sterilization(Diameter×Depth)

    250mm×450mm

    Volume

    23 L
