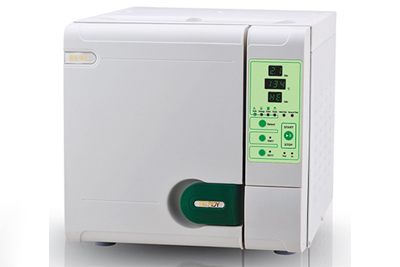

SS11

18/23 Liters Autoclave Sterilizer

Class B

Specifications:

Model		JY-18	JY-23
Capacity		18L	23L
Sterilizing temperature	121℃，134℃
Special function	kill the AIDS(HIV),hepatitis B(HBV)mad cow virus and Bacillus
Dry procedure	vacuum drying
Display	digital LED display with high definition
Sterilization program	4 kinds of programs
Test program	Vacuum test,Helix test
Sterilizing data		print by optional external mini-printer or download by USB port
Safety features	Safe Valve;Double-control lock system and self-test alam system
Water supply system	two water tanks inside,capacity of reservoirs(3.5L fresh water and 5L waste water)
AC power	220V/50Hz
Rated power	1600W
Instrument containers	5-layer activity pallet rack with 3 trays
Chamber size		250X355mm	250X450mm
N.W./G.W.		45/48KGS	47/50KGS
Packing size		660X550X560mm	660X550X560mm

Technical Features:

1.Steam generator and heating coil work separately.
Separate heating work of steam generator and heating coil lead to easy manipulation of the speed and volume of steam, reducing the water consumption. Heating coil lifetime is prolonged because its temperature will fall when chamber temperature goes up.
2.Material of cover is safe and reliable
Covers and chambers are made of imported 2mm SU304 stainless steel which will guarantee safety at a high pressure inside chambers and avoid the second pollution caused by the corrosion.
3.Advantages of the control system
Getidy innovates and develops new technology to control temperature and pressure and ensure the tolerance temperature inside chamber is less than 0.5℃.
4.The reliability of measurement accuracy
The accuracy of temperature is 1℃，and the accuracy of pressure is 0.1bar.
5.The safety of double-control lock
Use the newest machinery and electronic double-control lock ,to ensure the safety during the operation.
6. Automatic and manual adjustment of temperature sensor
The temperature sensor can adjust automatically or manually at will to ensure the autoclave work in different atmospheric environments.
7. Multilanguage are optional, Easy to operate
Users can easily find the language according to their requests.
8.Broad ventlight makes good heat dissipation

Instructions:

Please read the manual carefully before operation.
Put sterilizers on horizontal worktable and raise the front two supporting stands slightly.
Be sure to use distilled water in order to prolong the life of sterilizers.
Clean the water tanks and water filter regularly.
Do not move the sterilizer during the process of work.
All the medical equipment, blankets, clothing etc. which contact pathogenic microorganisms must be sterilized by chemical disinfectant first.
The package or container for disinfection items must be appropriate, and is recommended to use double wrapped white cotton with good steam penetration.
Try to put the same kind of instrument in the same sterilizer flatly,leave aperture, make sure steam can penetrate easily.
Make sure the machine in good condition, especially the safe valve.
Do not open the door until the pressure fall down to “0” bar.

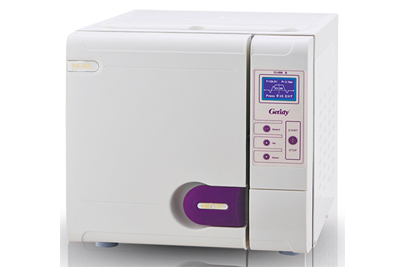

SS13

18/23 Liters Autoclave Sterilizer

Class B

Specifications:

Model	JQ-18	JQ-23
Capacity	18L	23L
Sterilizing temperature	121℃，134℃
Special function	kill the AIDS(HIV),hepatitis B(HBV)mad cow virus and Bacillus
Dry procedure	vacuum drying
Display	128X64 Dots LCD,multi languages
Sterilization program	12 kinds of programs
Test program	Bowie&Dick test,Vacuum test,Helix test
Sterilizing data	print by optional external mini-printer or download by USB port
Safety features	Safe Valve;Double-control lock system and self-test alam system
Water supply system	two water tanks inside,capacity of reservoirs(3.5L fresh water and 5L waste water)
AC power	220V/50Hz
Rated power	1600W
Instrument containers	5-layer activity pallet rack with 3 trays
Chamber size	250X355mm	250X450mm
N.W./G.W.	45/48KGS	47/50KGS
Packing size	660X550X560mm	660X550X560mm

Technical Features:

1.Steam generator and heating coil work separately.
Separate heating work of steam generator and heating coil lead to easy manipulation of the speed and volume of steam, reducing the water consumption. Heating coil lifetime is prolonged because its temperature will fall when chamber temperature goes up.
2.Material of cover is safe and reliable
Covers and chambers are made of imported 2mm SU304 stainless steel which will guarantee safety at a high pressure inside chambers and avoid the second pollution caused by the corrosion.
3.Advantages of the control system
Getidy innovates and develops new technology to control temperature and pressure and ensure the tolerance temperature inside chamber is less than 0.5℃.
4.The reliability of measurement accuracy
The accuracy of temperature is 0.5℃，and the accuracy of pressure is 0.1bar.
5.The safety of double-control lock
Use the newest machinery and electronic double-control lock ,to ensure the safety during the operation.
6. Automatic and manual adjustment of temperature sensor
The temperature sensor can adjust automatically or manually at will to ensure the autoclave work in different atmospheric environments.
7. Multilanguage are optional, Easy to operate
Users can easily find the language according to their requests.
8.Broad ventlight makes good heat dissipation

Instructions:

Please read the manual carefully before operation.
Put sterilizers on horizontal worktable and raise the front two supporting stands slightly.
Be sure to use distilled water in order to prolong the life of sterilizers.
Clean the water tanks and water filter regularly.
Do not move the sterilizer during the process of work.
All the medical equipment, blankets, clothing etc. which contact pathogenic microorganisms must be sterilized by chemical disinfectant first.
The package or container for disinfection items must be appropriate, and is recommended to use double wrapped white cotton with good steam penetration.
Try to put the same kind of instrument in the same sterilizer flatly,leave aperture, make sure steam can penetrate easily.
Make sure the machine in good condition, especially the safe valve.
Do not open the door until the pressure fall down to “0” bar.

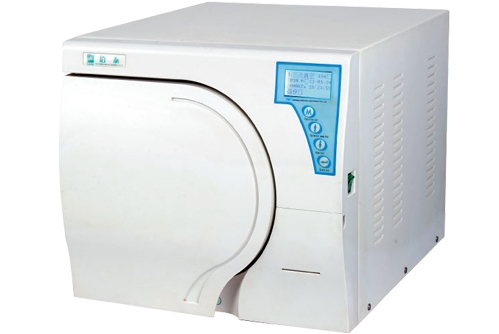

SS14-17

17 Liters Autoclave Sterilizer

European Class B 17L

LCD display

Build-in printer

Automatic electronic lock

Automatic distilled water refilling

Automatic Sterilizer
Functional Character:
□ Advanced steaming pressure way of sterilization recognized internationally.
□ Operating menus convenience，consumer may setup day, time etc.

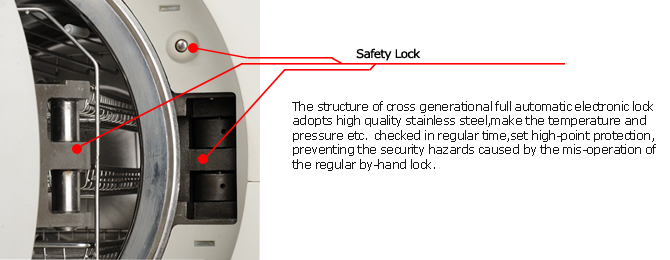

□ The structure of CROSS generational full automatic electronic lock.
□ Deep-stretched shape high quality stainless steel internal bladder.
□ High-luminance liquid crystal display .
□ Built-in temperature sensing printing，and equipped with pc interface，operating with remote maintenance.
□ Setup warm-up key, in order to keep room of sterilization temperature around 70℃.
□ Built-in and set by itself procedure of antisepsis，and the range of the antisepsis is wide .
□ Built-in cleaning and sewage equipment .
□ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.
Application Range:
Pressurized steam sterilizer is mainly applied to operating room．Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation．instruments of Stomatological Department,dressing, glassware, injecting apparatus.

	Room of Sterilization Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.

	Tray Rack The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.

	System Of The Printing Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.

Liters Autoclave Sterilizer

Quick Release Coupling
The two quick release coupling in the front make the drainage and watering easy.

Control System

The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization

Instruction of the Operational Mode:

Pre-set procedure		Tem (℃)	Pressure (bar)	Time of sterilization (Min)	Working total time (Min)	Loading	Maximum loading (kg)
1	Prepare Vacuum three times 134℃ Porous	134	2.1	4	35～45	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
2	Prepare Vacuum three times 121℃ Porous	121	1.0	20	50～60	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
3	Prepare Vacuum one times 134℃ Hollow	134	2.1	4	25～35	Un-packed half-solid equipment	6.00
4	Prepare Vacuum one times 134℃ Solid	134	2.1	4	20～30	Un-packed solid equipment	6.00
5	Prepare Vacuum one times 134℃ Solid	121	1.0	20	35～45	Un-packed solid equipment	6.00
6	Customer definition	105-134		4-40
7	Prepare Vacuum three times 134℃ Prion	134	2.1	18	45～60	Un-packed multi-loop equipment	1.00
						Packed textile	0.65
						One-layer packing solid or vacancy substances	3.00
						Double-layer packing solid or vacancy substances	1.50
8	Prepare Vacuum three times Customer definition	126 （105-134）	-	12 （1-40）	Dryness time 15 minutes(3-25min)		-
9*	B-D Test	Applied to Performance Test
10*	Leak Test	Applied to Performance Test

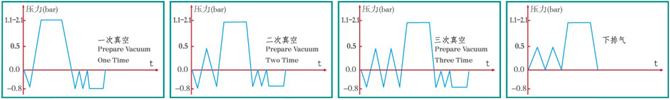

Circulat Chart of Sterilizer Machine:

Liters Autoclave Sterilizer

Parameters:

Voltage Rating and Frequency	AC220V, 50～60Hz
Input Power	1800W
Sterilization Temperature	121℃/134℃ (Customer Definition 105℃ ~ 134℃)
Operating Environment Temperature	5℃～40℃
Room of Sterilization(Diameter×Depth)	250mm×350mm
Volume	17 L
Overall Dimension(L×W×H)	475mm × 443mm × 572mm
Net Weight	57kg
Choosing Build-in Printer	Yes
Choosing USB Interface	Yes
