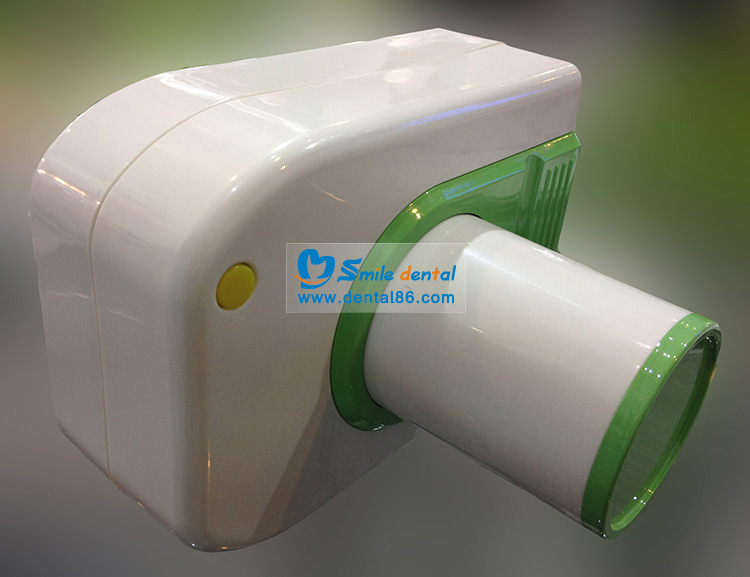

DP43 High Frequency Dental Portable X-Ray Unit

This portable high frequency dental X-ray unit is small size, light weight, excellent image quality and nearly no radiation , It can be control by hand switch or remote and fixed on the pole of dental chair. apply international power supply.

tube voltage: 60kV                       tube current: 1mA
tube focus: 0.3*0.3                      exposure time: 0.02～2S
frequency: 30kHz t                      distance from skin to cone: 130mm
battery: DC14.8V 6400mA         rated power: 60VA
Charger output: DC16.8V          input : AC100V-240V±10%
weight: 2.5kg                                size:138*165*185mm

TUV CE

New design

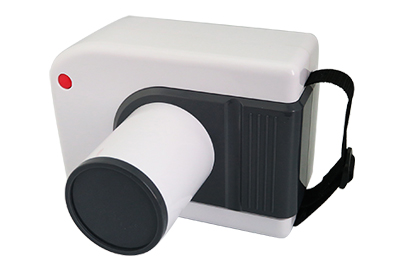

DP44 Portable Dental X-Ray Machine

Features:

1.This portable dental X-ray unit is high frequency machine.

2.The body is small, light weight and nearly no radiation.

3.It has excellent image quality, portable storage, save more space.

4.It uses high frequency and DC international power supply.

5.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

6.There are also manual buttons installed on the surface of shell, as well as batteries and charges.

7.This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery.

8. It also can connect with sensor, is great convenience.
Specifications:

Tube  Voltage）: 60kV
Tube  Current: 1mA
Exposure  Time: 0.02～2S
Tube  Focus: 0.3*0.3mm
Frequency:  30kHz
Battery: DC14.8V  6400mA
Rated   Power: 60VA
Charger  Input: AC100V-240V±10%
Charger  Output：DC16.8V
Weight:2.2kg
Size:138*165*185mm
The distance from skin to cone: 130mm

Details:

Structure:

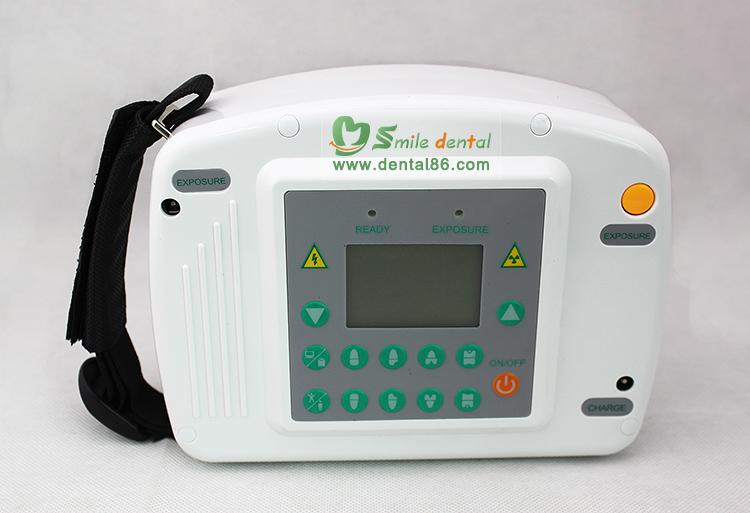

Control Panel:

Setting exposure time:

Exposure time reference:

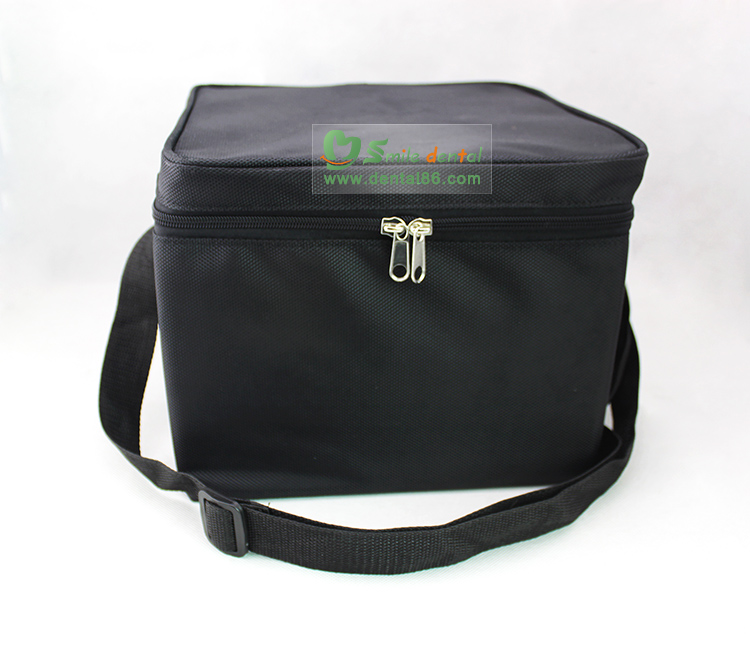

Package:

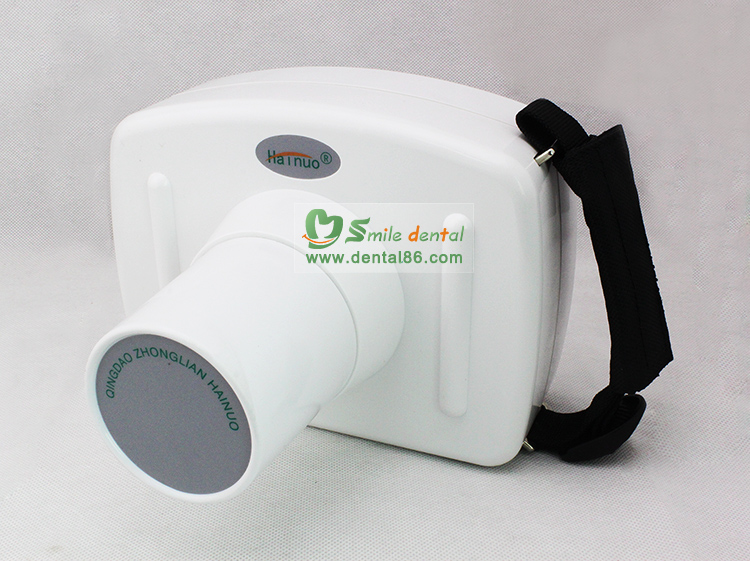

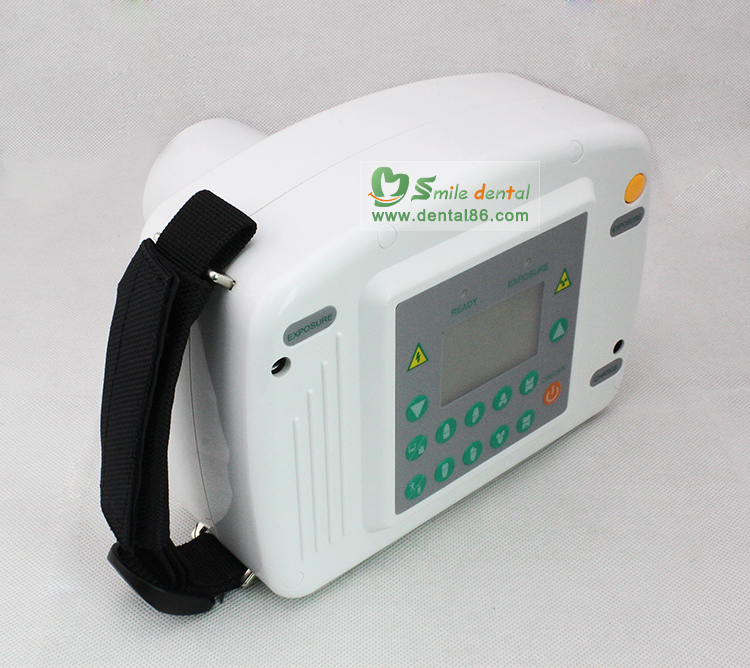

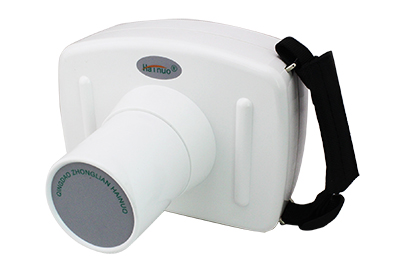

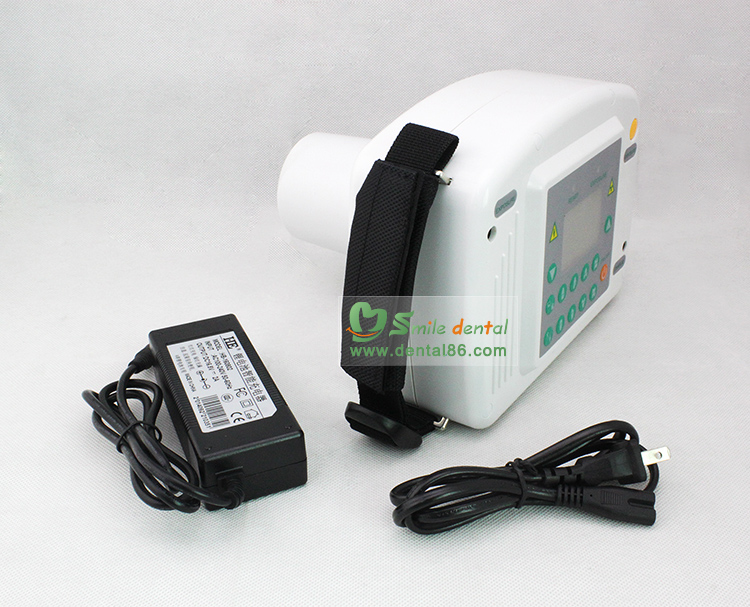

DP45 Portable X-Ray Machine

FEATURES

Small size,light weight,portable

Memory function,just once exposure,can memory exposure parameters forever

LCD screen,all function could see clearly

Tact switches,smartcontrol,convenience operating

High frequency power supply,low radiation,handsome appearance

Developing in light room,image in one minute,be used for diagnoses at once

Be use of the intraoral cavity digital imaging system

SPECIFICATIONS

Tube voltage:60kvp

Tube current:1.2mA

Focus size:0.4mm

Battery:14.8V 2200mAh

Charge voltage:AC100V~240V 50/60HZ

Exposure time:0~2.5s

Leak radiation:Outside one meter≤0.002mGy/h

Focal spot to skin distance:140mm

Dimension:190*150*200mm

Weight:2.6kg
