     - SDT-XR44
    SDT-XR44

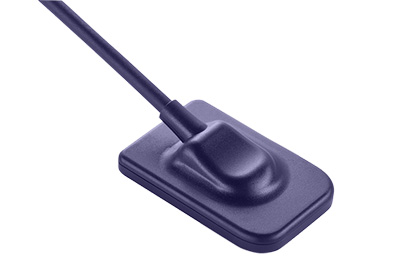

    Digital Intraoral Sensor
    1. HDR-500
    2. High-efficieny
    3. The airline domain dedicated sensor
    4. Compatible with different brands X-ray machine
    5. Waterproof
    6. Real solution is 16-20lp/mm

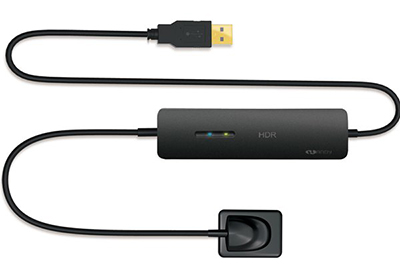

    SDT-XR44 Digital Intraoral Sensor

    Specification Parameters:

    Specification



    HDR-500



    Chip Type



    CMOS APS



    Fiber Optical Plate



    Yes



    Scintillator



    GOS/CsI



    Dimension



    27.5 x 38.5mm



    Active Area



    22.5 x 30mm



    Pixel Size



    675mm²



    18.5μm



    Active Pixels



    1.9M (1600*1200)



    Resolution



    Theoretical value: 27lp/mm



    Operation System



    Actual value: 12-14lp/mm (GOS) 16-20lp/mm(CsI



    Windows2000/xp/win7/win8/win8.1/win10 (32bit&64bit)





    1.Multi-languages with 10 types.
    2.Operation system: desk top & laptop (Windows 2000, XP, Win 7, Win 8,Win 10)
    3.Twain driver: our RVG compatible with KODAK, SIRONA, SCHICK, etc.
    4.Power :USB 2.0 interface
    5.Excellent quality: our sensor material imported from Germany and Japan , best quality standards.
    6.New APS CMOS sensor with long life time (400,000 times).
    7.Warranty for 1year

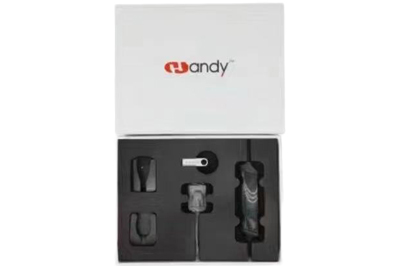

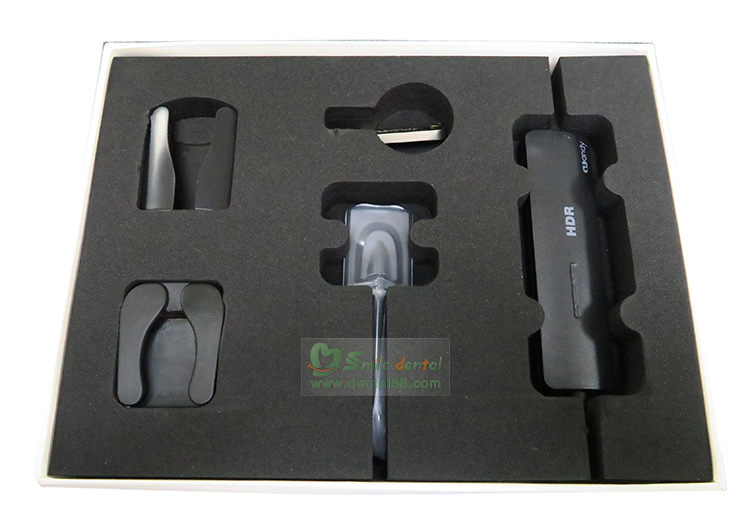

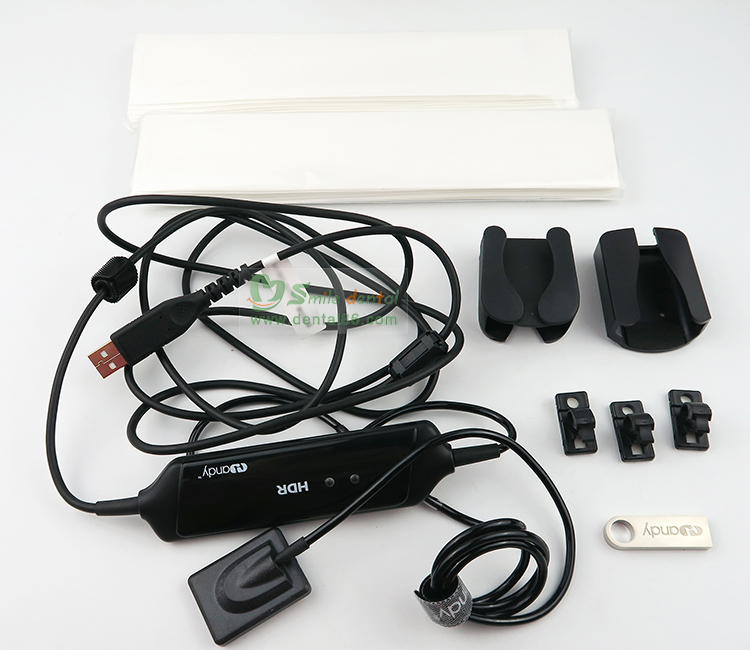

    Packing list:
    1. Manual 1pcs
    2. CD 1pcs
    3. X-Ray Sensor and Control Box 1pcs
    4. Holder 1pcs
    5. Sleeves 1 bag
    Packing information:
    GW:2.0kgs/set;
    Carton size:47*38*14cm

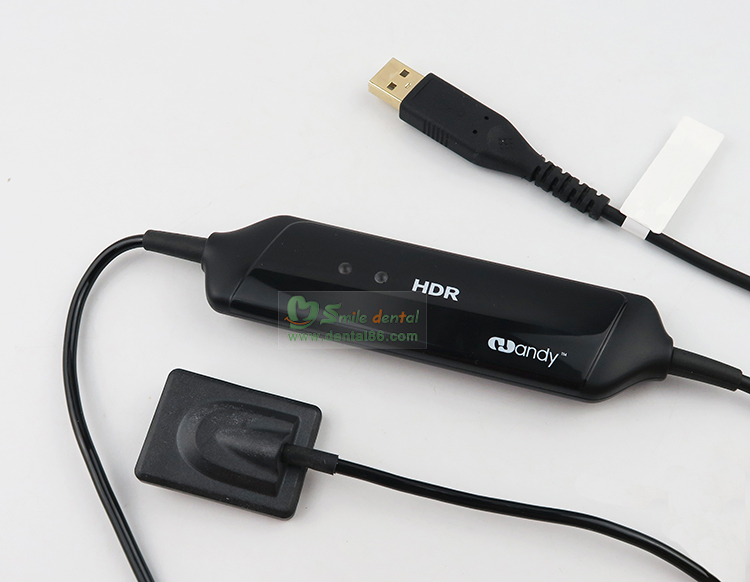

    Handy Intraoral sensor HDR-500
    Further EscalatedPerformance
    Digital DentalX-Ray imaging system
    HDR500/600 have more fashionable and lighter appearance. Moreover,Csl scintillator could be an option as per customer needs which has broader spectral dynamic range, higher X-ray conversion efficiency and better details showing ability.
    Digital Dental X-Ray Imaging system
    Integrated with R&D and production by handy, dental X-ray imaging system HDR - 500/600
    High Efficiency=High Profitability
    Only within a few seconds, image will be shown automatically, accomplish the high time-performance ratio at the greatest extent in diagnosis.
    APS CMOS Sensor, The Airline domain dedicated Sensor, Low expense, Long life time
    The long life time APS CMOS Sensor saves about 75% cost than traditional dental film.0.35nm production technology, and 3T, large range> 73Db, achieve the ability to transfer 4 images within a second.
    Compatible with different brands X-Ray machine
    Suitable for low- dose to high- dose machine
    Almost suitable with any brands X-Ray machine,it can increase sense ability,make any low-dose X-ray can be suitable, save cost of X-Ray machine.
    Higher technology integration
    CMOS chip,add technical grade super fiber plate, high efficiency and definition X- Ray transfer advanced technology restore the original clear tooth, make the image clear and sense, you can even find the smallest root canal easily.
    Large active surface, the size 1 active surface is 660mm²
    According To Statistics: The global average length of molar is 22mm. We designed
    ergonomics high quality sensor based on the realistic needs, while other company only provide 20mm, do you know how much the difference is?
    You should choose display area > 22mm sensor!
    High resolution for details
    Suitable to the low x-ray dose machine, For the smallest flaw and root apex infection
    diagnose you need high resolution contrast and high definition image, the real solution is 16~201p/mm

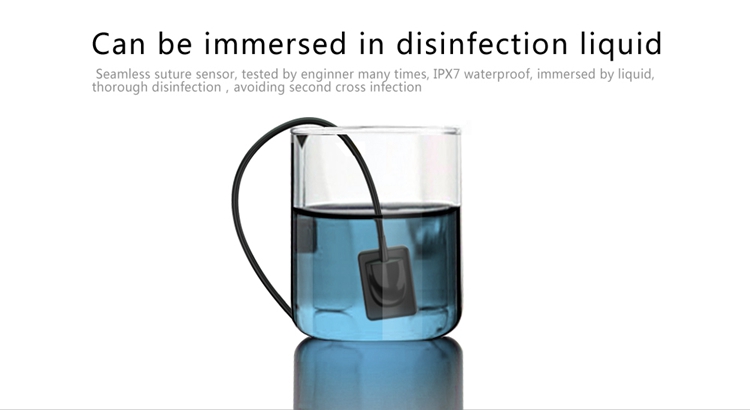

    Can be immersed in disinfection liquid
    Seamless suture sensor, tested by enginner many times, IPX7 waterproof, immersed by liquid, thorough disinfection , avoiding second cross infection
    The only Sensor in China can replace the cable
    Use high anti- tear Pu as the cover, easy to wash, flexible to bend, slender copper wire, million bend tests, really durable to use.

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor
    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor

    SDT-XR44 X ray Sensor




     - SDT-XR11
    SDT-XR11

    Mobile X-Ray Unit
    70KV
    CE



    Features
    Using the international advanced technology,efficient integrated design,high efficiency,low radiation.
    Using microcomputer intelligent control,not only remote controlled exposure,but more powerful function of low voltage alarm and high voltage protection.
    Micro focus technology,much more clear image and accurate diagnosis.
    The base has two modes of mobile and fixed ,pneumatic lift  soat ensures more convenient for dentist and more comfortable for patient.
    Can use lightroom dental film,imaging in one minute,maximum convenient dentist to diagnose.
    Can connect to dental digital imaging system,that is indispensable for clinicians to diagnose and root canal filling.

    Power supply
    Single phase AC 220V±22V; 50/60Hz
    Power capacity: >1.1kVA
    Power resistance: <2Ω

    Specifications
    Tube voltage: 70kV
    Tube current: 8mA
    Power: 480W
    Total filtration: 2.5mmAL
    Loading time: 0.2~4.0s, following R'10 series
    Focus spot to image receptor distance: 210mm
    Horizontal rotating angle of arm: >40°
    Up-down range of arm: >400mm
    Fuse: F10AL250V
    Leak radiation: outside one meter≦0.002mGy/h
    Unit weight: 50kg
    Package size: 152*57*26(cm)
    Net weight: 57kg

    Precautions
    1. In order to ensure safety in operation and use, good ground lead must be installed well.
    2. Because small X-ray machine’s thermal capacity is limited, attention should be paid to making the machine work intermittently.
    3. Only during exposure process this machine will produce X-rays. It won’t produce X-rays in power-off state, neither in power-on state as long as not in exposure.
    4. If any unforeseen circumstances occur during correct use, operators should cut off the power immediately and stop using the machine. It cannot be used again until it is overhauled and qualified.
    5. Before leaving the factory, each X-ray device is equipped with an additional filter plate with the following specifications: 1.0/0.5mm aluminum sheets.
    6. Every time when disassembling the machine, disassemble the head first and then other parts.
    8. Every time after using the machine, recover the cross arm to the highest point, and then place the machine head in an equilibrium position.
    9. Every time after using, sterilize and clean beam tube end that contacts the patient with medical alcohol.
    10. Clean the machine surface with a dry cloth every week and inspect whether the connectors contact well.
    11. Pay attention to machine maintenance. Check whether the indicator lights, display, rotary knob, switch, and remote control work normally; whether the X-ray source modules leak oil; whether when X-ray source modules expose produces any abnormal noise; or whether fixed screws in the mechanical part loose, and the like.
    13. The rated capacity of the machine is 1.1kw. Please select power supply or power grid with a power supply capacity greater than 1.5kw. If network voltage in this region is abnormal, we recommend matching 1.5KW or higher industrial voltage stabilizer, to prevent damage to the machine and reduced machine life due to abnormal voltage.


     - SDT-XR12
    SDT-XR12

    Wall-mounted X-Ray Unit
    70KV
    CE



    Features
    Using the international advanced technology,efficient integrated design,high efficiency,low radiation.
    Using microcomputer intelligent control,not only remote controlled exposure,but more powerful function of low voltage alarm and high voltage protection.
    Micro focus technology,much more clear image and accurate diagnosis.
    The base has two modes of mobile and fixed ,pneumatic lift  soat ensures more convenient for dentist and more comfortable for patient.
    Can use lightroom dental film,imaging in one minute,maximum convenient dentist to diagnose.
    Can connect to dental digital imaging system,that is indispensable for clinicians to diagnose and root canal filling.

    Power supply
    Single phase AC 220V±22V; 50/60Hz
    Power capacity: >1.1kVA
    Power resistance: <2Ω

    Specifications
    Tube voltage: 70kV
    Tube current: 8mA
    Power: 480W
    Loading time: 0.2~4.0s, following R'10 series
    Focus spot to image receptor distance: 210mm
    Horizontal rotating angle of arm: >80°
    Up-down range of arm: >400mm
    Fuse: F10AL250V
    Unit weight: 31Kg



    Precautions
    1. In order to ensure safety in operation and use, good ground lead must be installed well.
    2. Because small X-ray machine’s thermal capacity is limited, attention should be paid to making the machine work intermittently.
    3. Only during exposure process this machine will produce X-rays. It won’t produce X-rays in power-off state, neither in power-on state as long as not in exposure.
    4. If any unforeseen circumstances occur during correct use, operators should cut off the power immediately and stop using the machine. It cannot be used again until it is overhauled and qualified.
    5. Before leaving the factory, each X-ray device is equipped with an additional filter plate with the following specifications: 1.0/0.5mm aluminum sheets.
    6. Every time when disassembling the machine, disassemble the head first and then other parts.
    8. Every time after using the machine, recover the cross arm to the highest point, and then place the machine head in an equilibrium position.
    9. Every time after using, sterilize and clean beam tube end that contacts the patient with medical alcohol.
    10. Clean the machine surface with a dry cloth every week and inspect whether the connectors contact well.
    11. Pay attention to machine maintenance. Check whether the indicator lights, display, rotary knob, switch, and remote control work normally; whether the X-ray source modules leak oil; whether when X-ray source modules expose produces any abnormal noise; or whether fixed screws in the mechanical part loose, and the like.
    13. The rated capacity of the machine is 1.1kw. Please select power supply or power grid with a power supply capacity greater than 1.5kw. If network voltage in this region is abnormal, we recommend matching 1.5KW or higher industrial voltage stabilizer, to prevent damage to the machine and reduced machine life due to abnormal voltage.

    Mobile X-Ray Unit
