XRE600

Image Plate Scanner

1. PSP Scanner

2. Plate Sizes: 0, 1, 2, 3

Support IP sizes：0（22×31mm）, 1（24×40mm）, 2（31×41mm）, 3（27×54mm）

System Configuration: Windows XP,Windows 7,Windows 8,Windows 10

Image Plate Scanner Specification
Data	Size	Standard	High
Support IP sizes	0（22×31mm）	343×484 pixels	628×885 pixels
	1（24×40mm）	375×625 pixels	685×1143 pixels
	2（31×41mm）	484×640 pixels	886×1171 pixels
	3（27×54mm）	421×843 pixels	771×1542 pixels
Product Model	EQ-600
Selectable Pixel Size	35μm
Detector Technology	APS CMOS
Software*	UT-Dental
Active Area	32*54mm
Mechanical Size	34*55mm
Readout Time	15s
Data Capture	16-Bits 65,536 grey level
Eraser	Embedded(auto)
Dimensions (HWD)	305211182mm
Weight	6Kg
System Configuration	Windows XP,Windows 7,Windows 8,Windows 10
Power	100-240V(AC) 50/60Hz 1.5A
Interface	USB 2.0 high speed(480 Mbps) / Ethernet(100Mbps)
Work Tempreture	10 to 40 ℃
Storage Tempreture	-25 to +60℃
Humidity (non-condensing)	10 to 93% R.H

XRE600 Image Plate Scanner

XR60

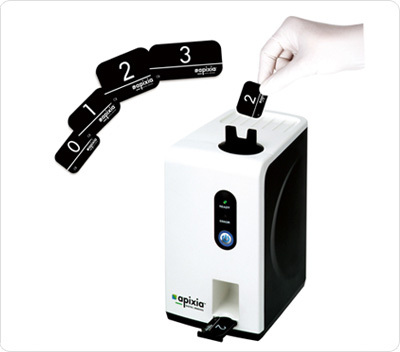

Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

1. Apixia PSP Scanner

2. Plate Sizes: 0, 1, 2, 3

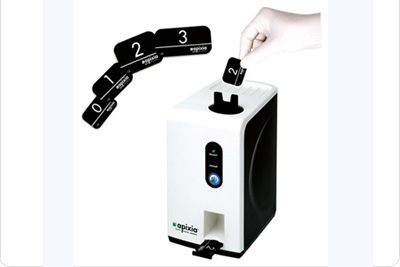

XR60 Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

Overview

Small Size, Big Impact

The Apixia PSP Scanner packs tremendous imaging power into a small package. Tiny enough to fit into the most crowded dental operatories for handy chairside use, yet robust enough to be placed in a central location for use by the entire office, the Apixia PSP Scanner is the ideal product for any size dental practice. Imaging with PSP plates offers all the flexibility and patient comfort of film, combined with the immediacy and environmental benefits of digital radiography. It's truly the best of both worlds.

Images in Just a Few Easy Steps

Imaging is fast and simple: Position and expose the flexible PSP plate just like a piece of film, remove it from the hygienic envelope, and drop it into the Apixia PSP Scanner. The smart top-loading design harnesses the power of gravity for simple loading and fuss-free use. In less than ten seconds, the crystal clear radiograph appears on the computer screen, ready for viewing. Then, just simply insert the next exposed plate when ready. The unit's in-line eraser clears the imaging plate for its next use automatically. When the plate is ejected from the bottom of the machine, it's ready for immediate re-use. Plus, plates are reusable thousands of times to maximize your investment. The sturdy design is whisper quiet and vibration free. And, bright LED lights in the machine's front control panel guide users every step of the way.

Specifications

Dimension:

258 mm x 138 mm x 183 mm

Weight:

3.6 kg

Voltage Requirements:

AC 100-240 V AC 60/50 Hz

Scan Time:

10 seconds

Resolution:

17 lp/mm

USB Cable Length:

1.8 meters

Connection Type:

USB 2.0

Computer System Requirements:
Note: Computer not included
Windows Versions
Min. RAM
Min. Video
Card Min.
Hard Drive Space
Monitor
Other

Windows XP, Windows Vista, Windows 7 32/64 bit
512 MB, 1 GB recommended
Pentium4 CPU or better
SVGA 1024 x 768
40 GB
High Quality Display (Flat Panel or CRT)
recommended. 1000:1 Contrast Ratio and 0.255 dot
pitch recommended
Backup System highly recommended. High Speed Internet is suggested for enhanced technical support assistance.

Plate Sizes:

Sizes 0, 1, 2, 3

Gray Level:

14 bit

Limited Warranty:

Two Years Parts and Factory Labor Limited Warranty. See Warranty for more details.

Regulatory:

US FDA, CE, IEC 60601-1, IEC 60601-1-2

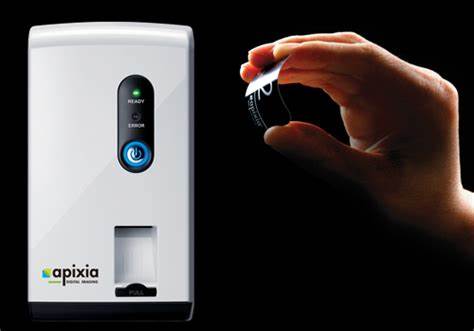

SDT-XR60 Apixia Digital Dental Imaging

XR6S1

Image Plate Scanner

The image can be adjusted directly on the software
Durable image plate, low cost
Excellent image quality
Three year warranty
Applicable to size 0-3 image plates
Simple and efficient operation process

XR6S1 Image Plate Scanner

IMAGE PLATE SCANNER

Inpixel provides dentists with high-resolution digital X- ray images to meet various diagnostic needs

Excellent image quality

The exclusive and proprietary core technology enables the Inpixel Dental image Plate Scanner to distinguish all the details needed by the dentist, making the diagnosis clearer and more accurate


SOFTWARE	DESIGN
Professional image processing The professional image processing software developed by our company allows you to easily scan, manage and share files	Lightweight and flexible design Inpixel image plate scanner has a streamlined appearance design, light and flexible, is easy to use, and can be used directly beside the chair

The characteristics of Inpixel Image plate scanner superior to traditional film

    No need for dark room operation
    No harmful chemical substances, safe and environmentally friendly
    Adjustable image to avoid overexposure or underexposure
    Digital images, ready to use
    Digital diagnosis and storage

The characteristics of Inpixel image plate scanner superior to sensors

    Thin and soft, without data lines, increasing the comfort of patients
    The method of use is similar to that of traditional film, and you can use it right out of the box
    The surface of the image plate is 100% photosensitive
    Support image plate of various sizes

Excellent industrial design achieves its high-end appearance; reliable quality wins the favor of most dentists; simple operation, ready to use out of the box.
