    - XRE600
    XRE600

    Image Plate Scanner

    1. PSP Scanner

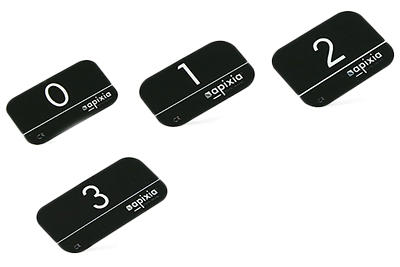

    2. Plate Sizes: 0, 1, 2, 3




    Support IP sizes：0（22×31mm）, 1（24×40mm）, 2（31×41mm）, 3（27×54mm）

    System Configuration: Windows XP,Windows 7,Windows 8,Windows 10

      Image Plate Scanner Specification

    Data

    Size

    Standard

    High

    Support IP sizes

    0（22×31mm）

    343×484 pixels

    628×885 pixels

    1（24×40mm）

    375×625 pixels

    685×1143 pixels

    2（31×41mm）

    484×640 pixels

    886×1171 pixels

    3（27×54mm）

    421×843 pixels

    771×1542 pixels

    Product Model

    EQ-600

    Selectable Pixel Size

    35μm

    Detector Technology

    APS CMOS

    Software*

    UT-Dental

    Active Area

    32*54mm

    Mechanical Size

    34*55mm

    Readout Time

    15s

    Data Capture

    16-Bits     65,536 grey level

     Eraser

    Embedded(auto)

    Dimensions (H*W*D)

    305*211*182mm

     Weight

    6Kg

    System Configuration

    Windows XP,Windows 7,Windows 8,Windows 10

    Power

    100-240V(AC)  50/60Hz  1.5A

    Interface

    USB 2.0 high speed(480 Mbps) / Ethernet(100Mbps)

    Work Tempreture

    10 to 40 ℃

    Storage Tempreture

     -25 to +60℃

    Humidity
    (non-condensing)

    10 to 93% R.H

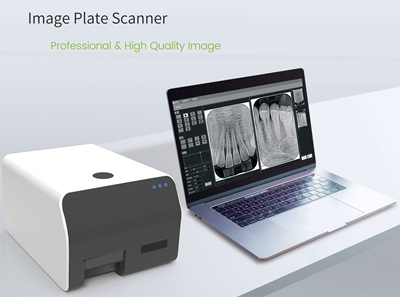

    SDT-XRE600 Image Plate Scanner

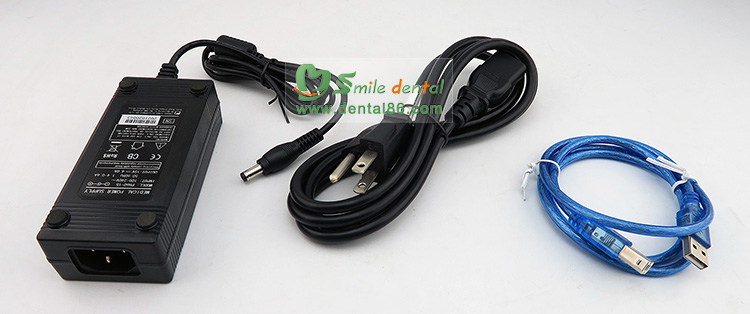

    Image Plate Scanner

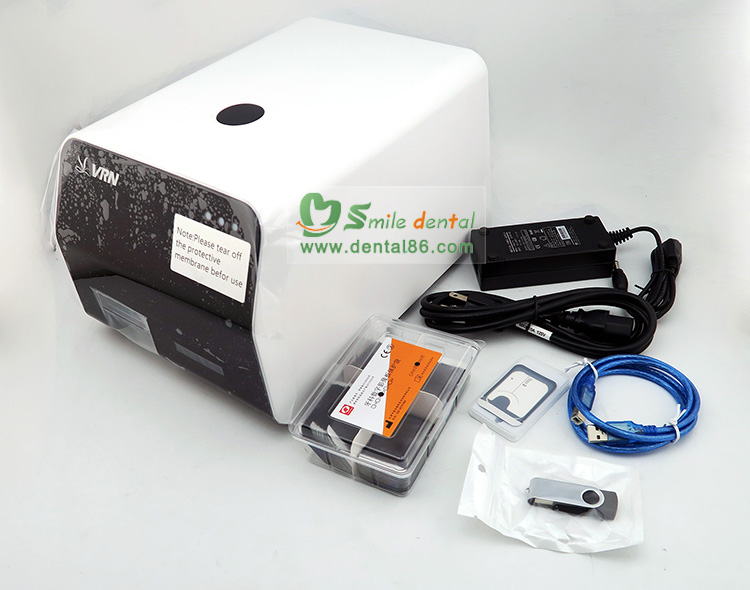

    Image Plate Scanner

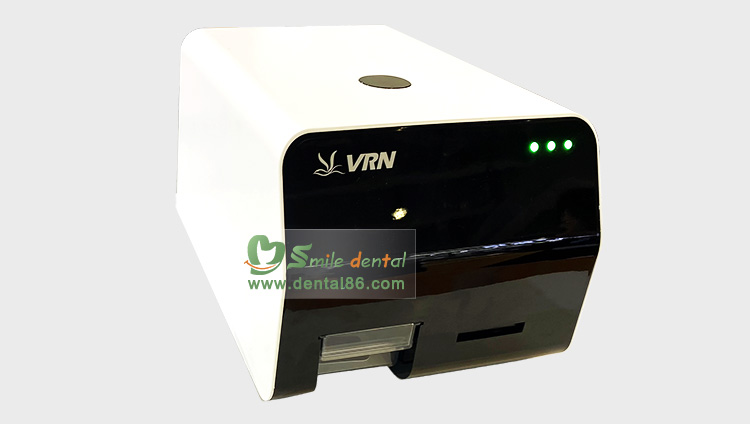

     SDT-XRE600 Image Plate Scanner

    - XR60
    XR60

    Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

    1. Apixia PSP Scanner

    2. Plate Sizes: 0, 1, 2, 3








    XR60 Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

    Overview





    Small Size, Big Impact





    The Apixia PSP Scanner packs tremendous imaging power into a small package. Tiny enough to fit into the most crowded dental operatories for handy chairside use, yet robust enough to be placed in a central location for use by the entire office, the Apixia PSP Scanner is the ideal product for any size dental practice. Imaging with PSP plates offers all the flexibility and patient comfort of film, combined with the immediacy and environmental benefits of digital radiography. It's truly the best of both worlds.









    Images in Just a Few Easy Steps





    Imaging is fast and simple: Position and expose the flexible PSP plate just like a piece of film, remove it from the hygienic envelope, and drop it into the Apixia PSP Scanner. The smart top-loading design harnesses the power of gravity for simple loading and fuss-free use. In less than ten seconds, the crystal clear radiograph appears on the computer screen, ready for viewing. Then, just simply insert the next exposed plate when ready. The unit's in-line eraser clears the imaging plate for its next use automatically. When the plate is ejected from the bottom of the machine, it's ready for immediate re-use. Plus, plates are reusable thousands of times to maximize your investment. The sturdy design is whisper quiet and vibration free. And, bright LED lights in the machine's front control panel guide users every step of the way.





    Specifications





    Dimension:





    258 mm x 138 mm x 183 mm





    Weight:





    3.6 kg





    Voltage Requirements:





    AC 100-240 V AC 60/50 Hz





    Scan Time:





    10 seconds





    Resolution:





    17 lp/mm





    USB Cable Length:





    1.8 meters





    Connection Type:





    USB 2.0





    Computer System Requirements:
    Note: Computer not included
    Windows Versions
    Min. RAM
    Min. Video
    Card Min.
    Hard Drive Space
    Monitor
    Other





    Windows XP, Windows Vista, Windows 7 32/64 bit
    512 MB, 1 GB recommended
    Pentium4 CPU or better
    SVGA 1024 x 768
    40 GB
    High Quality Display (Flat Panel or CRT)
    recommended. 1000:1 Contrast Ratio and 0.255 dot
    pitch recommended
    Backup System highly recommended. High Speed Internet is suggested for enhanced technical support assistance.





    Plate Sizes:





    Sizes 0, 1, 2, 3





    Gray Level:





    14 bit





    Limited Warranty:





    Two Years Parts and Factory Labor Limited Warranty. See Warranty for more details.





    Regulatory:





    US FDA, CE, IEC 60601-1, IEC 60601-1-2





    SDT-XR60 Apixia Digital Dental Imaging

    SDT-XR60 Apixia Digital Dental Imaging

    SDT-XR60 Apixia Digital Dental Imaging
