Item

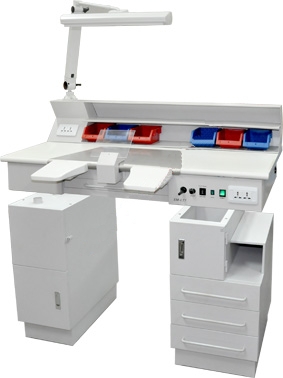

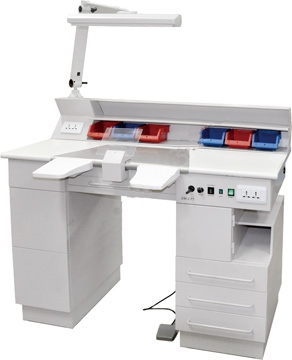

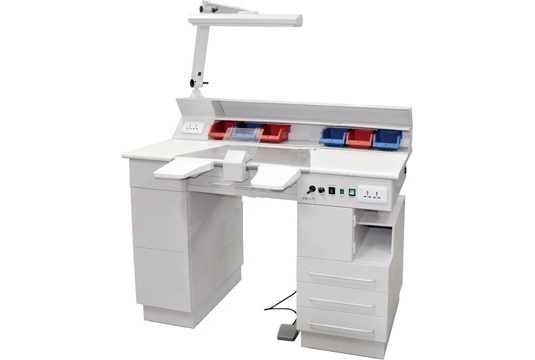

X-TYPE1 Dental Workstation (Building block style)

Certification
CE Approved　ISO9001:2000 Approved

Purpose
This unit is used in dental laboratories for removal of dust resulting from machining.

Description
X-TYPE1 Dental Workstation (Building block style) is the latest design in 2011 from Aixin Medical. It features 4 detachable parts and easy installations, which lowers the expensive delivery costs for some countries. A 40" container can now load over 70 workstations. In contrast, only 45 workstations can be loaded for older models, therefore, reducing the shipping costs by over 40%. Thanks to years of customer feedback, many modifications have been made. For example, arm rests with locks to ensure the safety, dust collector with foot control for easy controls, built-in dust collector for lower noise level and easy dust collection, and additional power sockets, etc.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 500W
Air Volume: 172m³/h
Max. Pressure: -26kPa
Noise Level: <60dB
Dimensions: 85cm x 60cm x 120cm (H W D)
Shipping Dimensions: 80cm x 66cm x 38cm (H W D) PART1
Shipping Dimensions: 80cm x 69cm x 48cm (H W D) PART2
Shipping Dimensions: 27cm x130cm x70cm (H W D) PART3
Weight: 120kg

Parts Included
Fluorescent Lighting System×1
Air Nozzle×1
Arm Rest×2
Backup Power Socket×2
Dust Extraction System×1
Tools Drawer×2
Storage Drawer×5
Pan×6
Acrylic Resin Tabletop×1 (Optional)
Hettich Drawer Slide (Germany)×8 (Optional)
Gas System×3
Technician Stool×3 (Optional, please refer to C450)
Handpiece control assembly × 1 (Optional)
Micromotor handpiece× 1 (Optional)

Colors
If the order quantity is more than 12PCS, the color of the workstation can be customized. The colors in the pictures are for reference only, and are not used for final color matching.

Gloss Paint: Color Card 01, Color Card 02, Color Card 03, Color Card 04, Color Card 05
Flat Paint: Color Card 01, Color Card 02, Color Card 03
Sand Textured Paint: Color Card 01, Color Card 02, Color Card 03

Assemble
 Disassemble
