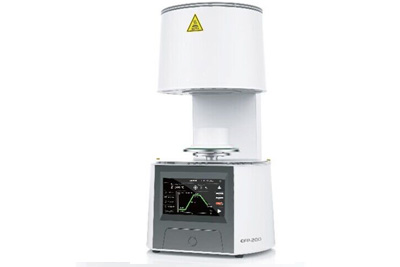

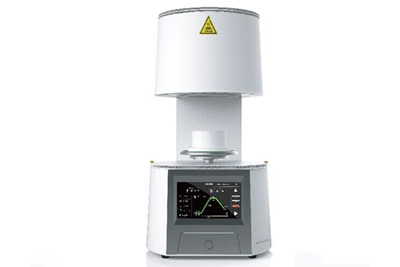

UPF200 Porcelain Furnace

Description:

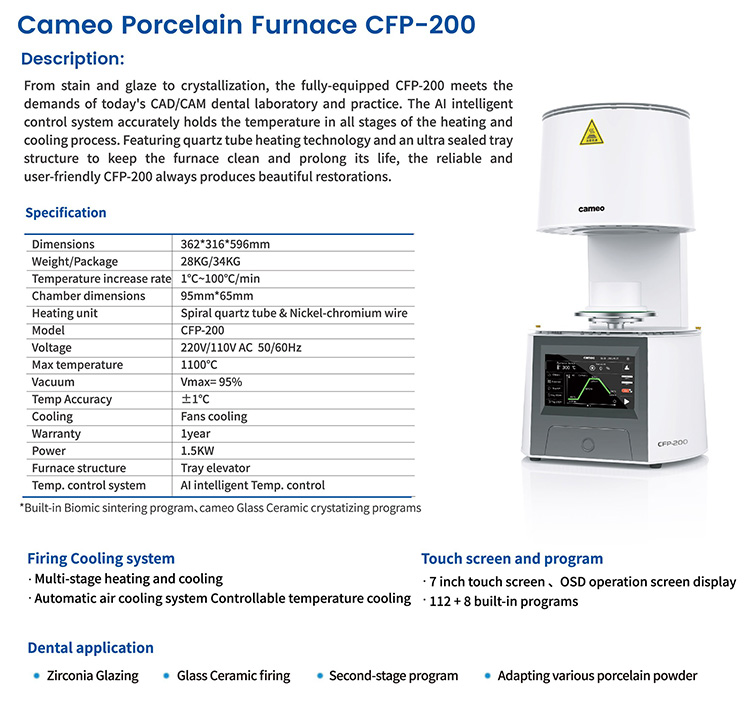

From stain and glaze to crystallization, the fully-equipped CFP-200 meets the demands of today's CAD/CAM dental laboratory and practice. The Al intelligent control system accurately holds the temperature in all stages of the heating and cooling process. Featuring quartz tube heating technology and an ultra sealed tray structure to keep the furnace clean and prolong its life, the reliable and user-friendly CFP-200 always produces beautiful restorations.

Specification

Dimensions：362*316* 596mm

Weight/Package：28KG/34KG

Temperature increase rate:1°C~100°C/min

Chamber dimensions:95mm* 65mm

Heating unit:Spiral quartz tube & Nickel-chromium wire

Model:CFP-200

Voltage:220V/110V AC 50/60Hz

Max temperature:1100°C

Vacuum:Vmax= 95%

Temp Accuracy:士1°C

Cooling:Fans cooling

Warranty:1year

Power:1.5KW

Furnace structure:Tray elevator

Temp. control system:Al intelligent Temp. control

*Built-in Biomic sintering program. cameo Glass Ceramic crystatizing programs

Firing Cooling system

. Multi-stage heating and cooling

. Automatic air cooling system Controllable temperature cooling

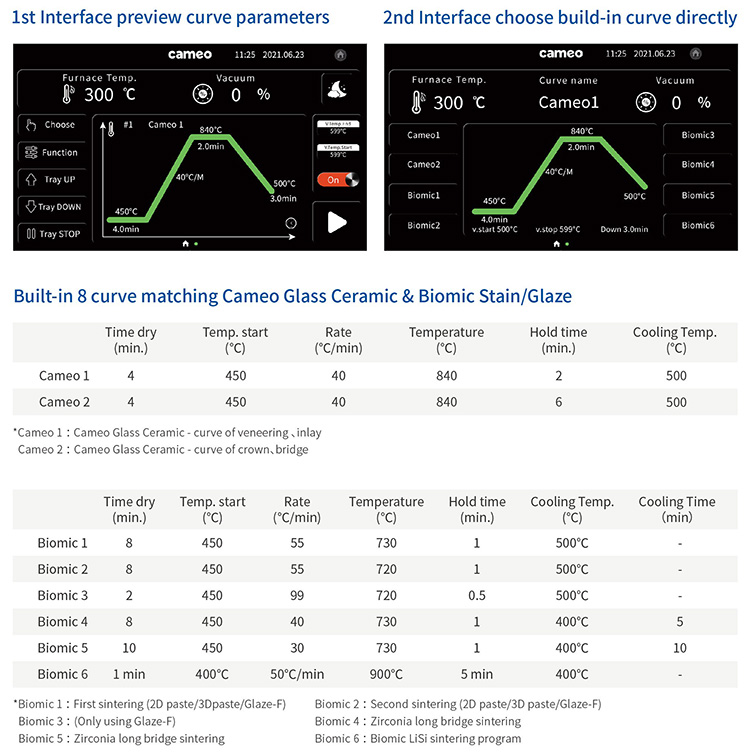

Touch screen and program

.7 inch touch screen、OSD operation screen display

.112 + 8 built-in programs

Dental application

●Zirconia Glazing
●Glass Ceramic firing
●Second-stage program
●Adapting various porcelain powder
