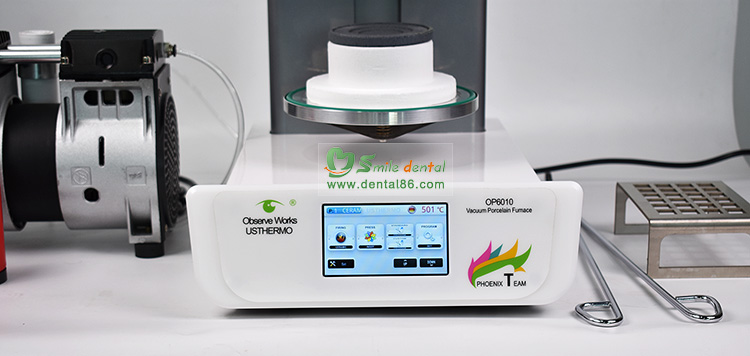

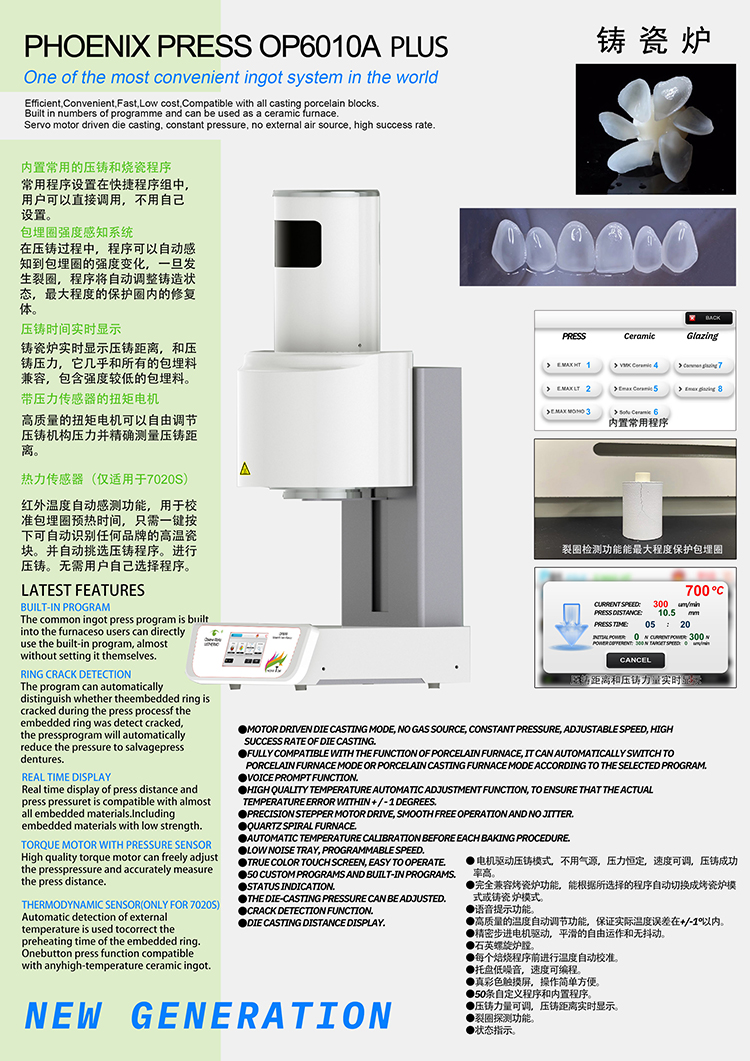

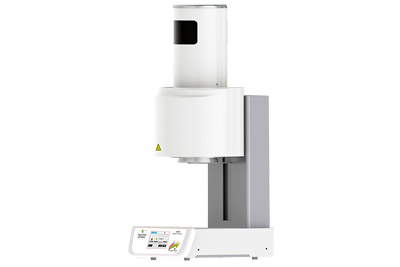

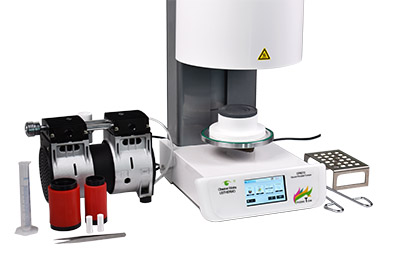

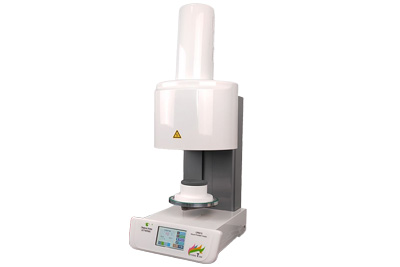

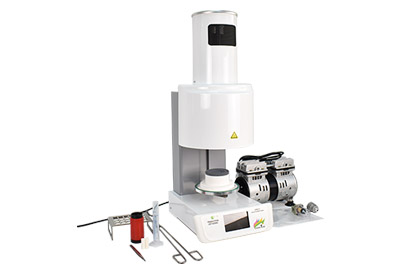

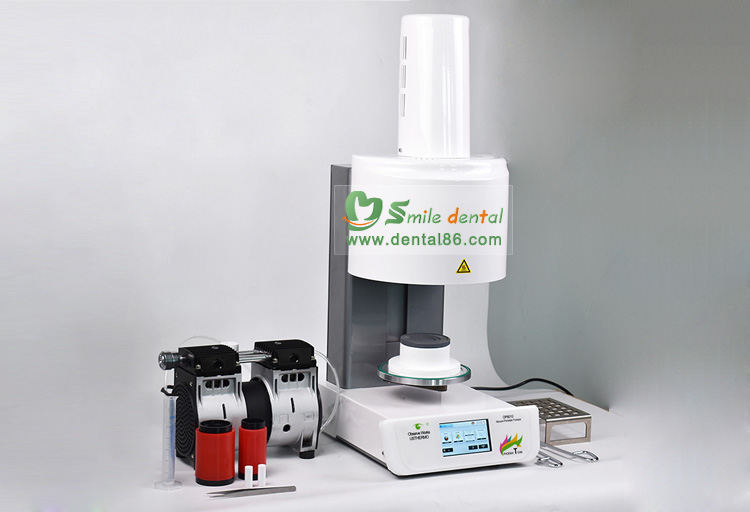

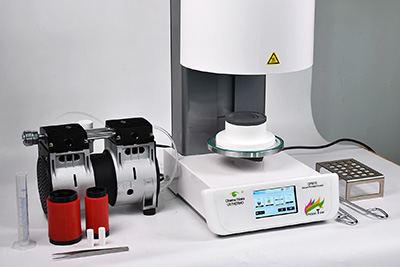

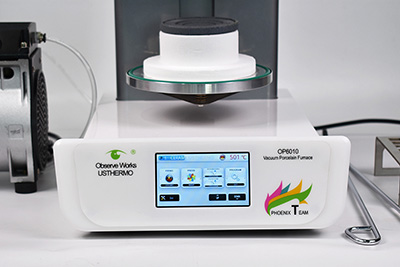

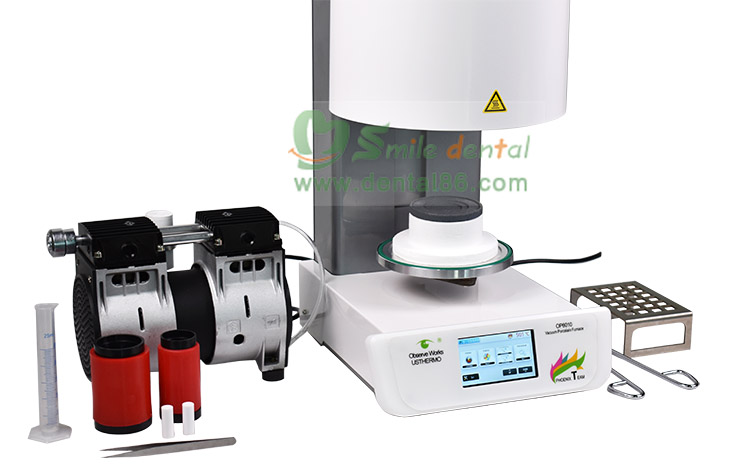

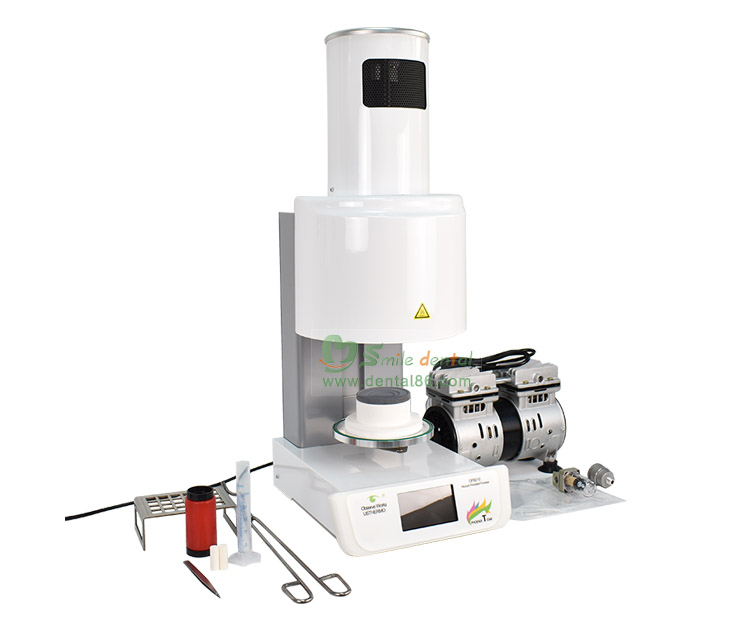

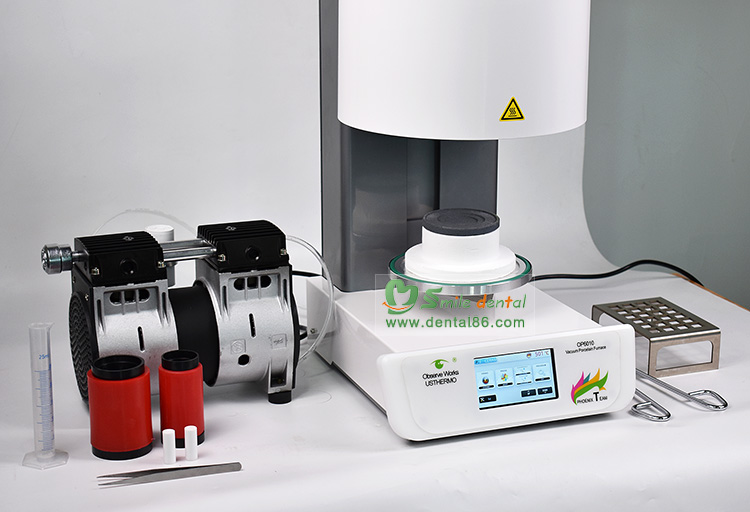

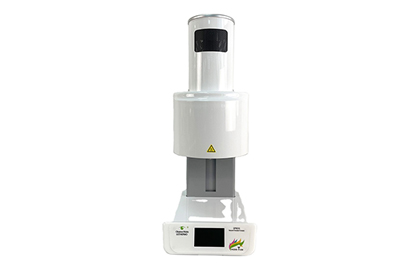

UP601P Porcelain Furnace For Press

Efficient,Convenient,Fast,Low cost,Compatible with all casting porcelain blocks.

Built in numbers of programme and can be used as a ceramic furnace.

Servo motor driven die casting, constant pressure, no external air source, high success rate.

OPERATION：
The velocity of temperature increasing: 200℃/min max.(392°F /minute)
The max temperature: : 1200℃ max (2283°F)
The time which can be kept at the max temperature: 2 H Vacuum level:1-101%

ELECTRIC POWER：
Operation range：100-120V 50/60HZ 230V 50/60HZ
Electric current：14.5ampere@110V 7.0ampere@230V
Power：max 1500w

TYPICAL SPECIFICATION：
WXDXH :width 27cm Depth 36cm Height 70cm
Usable measure (firing chamber):：9cm（3.5”）
Net weight：23Kg
Weight include the package:26.5Kg

AMBIENT CONDITIONS
. Indoor use
.Ambient temperature: 2°C to 40°C
. Relative humidity 80% at 31°C
.Maximum altitude: 1500 m (Special Model:3500m)
.Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage

Vacuum PUMP:
  net weight:9kg
  include the package :10kg
  WXDXH :width 25cm Depth 11cm Height 22cm
                  include the package:41*32*28cm
