- SDT-XR63
Phosphor Plates

SDT-XR63

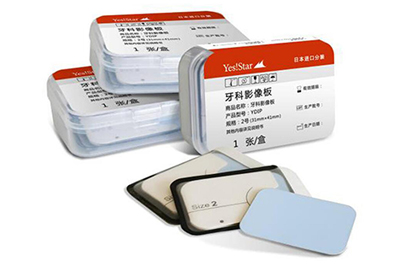

SDT-XR63 Phosphor Plates

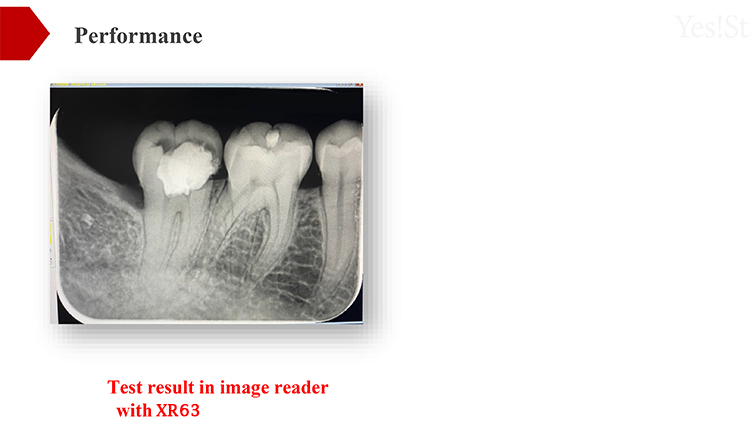

Clear image in rich layers
Excellent detail performance in high contrast

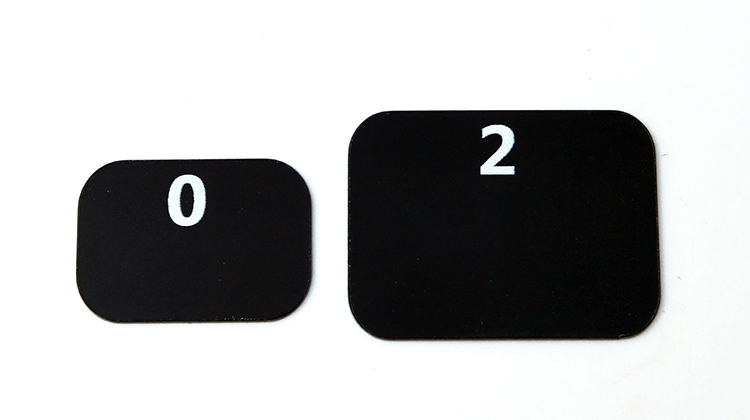

SIZIE
#0   22x31mm
#1   24x40mm
#2   31x4lmm
#3   27x54mm

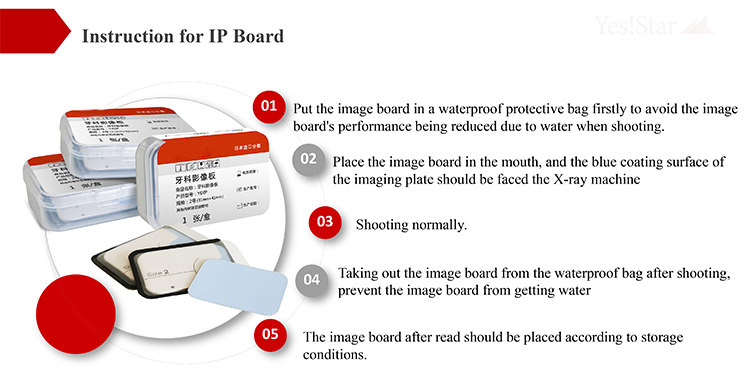

Instruction
1 Put the image board in a waterproof protective bag firstly to avoid the image
board's performance being reduced due to water when shooting.
2 Place the image board in the mouth, and the blue coating surface of
the imaging plate should be faced the X-ray machine
3 Shooting normally.
4 Taking out the image board from the waterproof bag after shooting,
prevent the image board from getting water

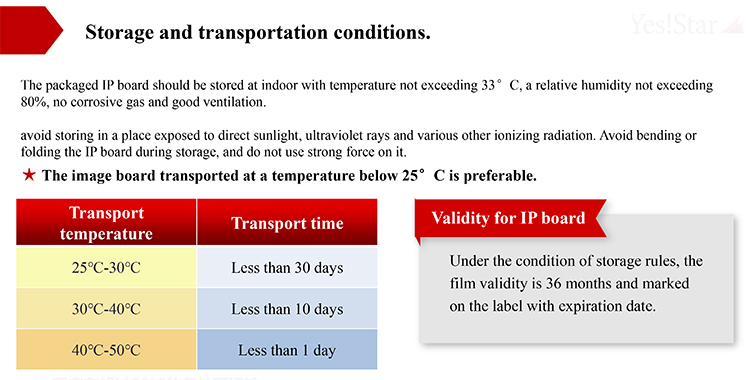

5 The image board after read should be placed according to storage
conditions.
