- XR45A
Intraoral Sensor HDR-500a

XR45A
HANDY 500A
Operation System:win7/win10
Sensor Active Area: 30×22.5

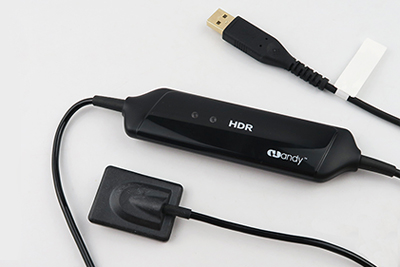

XR45A Intraoral Sensor HDR-500a

Digital Intraoral Sensor
Technical Data
Sensor: APS CMOS sensor
External dimension (mm): 40×26 (HDR500A)
Sensor Active Area: 30×22.5 (HDR500A)
Sensor Thickness: 6 mm
Dynamic Range: 0~4,096
Power: 5V±0.5V
Image Transfer: USB 2.0
Cable Length: ≥ 3 m

Operating Conditions
Environment Temperature: +10℃~+40℃
Environment relative humidity: ≤95%
Air pressure: 860hPa~1060hPa
Transport and Storage conditions:
Environment Temperature: -25℃~+60℃
Environment relative humidity: 10%~93%

Feature
1. Multi-languages with 10 types.
2. Operation system: desk top & laptop (Win 7, Win 8, Win 10).
3. Twain driver.
4. Power: USB 2.0 interface.
5. Excellent quality: our sensor material imported from Germany and Japan, best quality standards.
6. New APS CMOS sensor with long life time (400,000 times).
7. Warranty for one year.

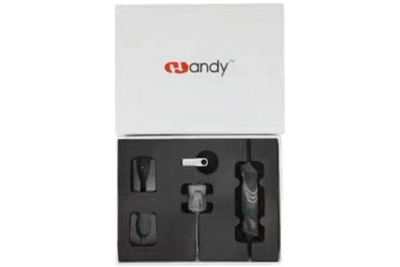

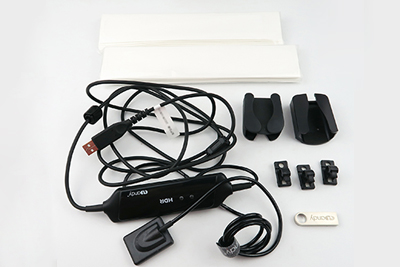

Packing List
1. Manual 1pcs
2. CD 1pcs
3. X-Ray Sensor and Control Box 1pcs
4. Holder 2pcs
5. Sleeves 1 bag
