- SS14B-17
Steam Sterilizer

SS14B-17

European Class B  17L





LCD display





Build-in printer





Top-designed Reservoir

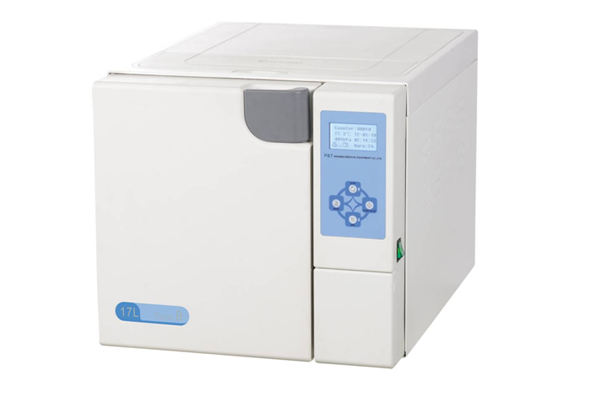

SS14B-17 Steam Sterilizer

SS14B-17 Steam Sterilizer

Automatic Sterilizer

Functional Character:

 Advanced steaming pressure way of sterilization recognized internationally.

Operating menus convenience,consumer may setup day, time etc.

Deep-stretched shape high quality stainless steel internal bladder.

High-luminance liquid crystal display .

Built-in temperature sensing printing,and equipped with pc interface,operating with remote maintenance.

Setup warm-up key, in order to keep room of sterilization temperature around 70℃.

Built-in and set by itself procedure of antisepsis,and the range of the antisepsis is wide .

Built-in cleaning and sewage equipment .
□ When outlaying it can connect with the system of distilled water, it can also connect with the sewage pipe directly.

Application Range:

Pressurized steam sterilizer is mainly applied to operating room.Stomatological Department Ophthalmologic Department and biomedicine research unit, and it can sterilize some substances such as instruments of operation.instruments of Stomatological Department,dressing, glassware, injecting apparatus.







Room of Sterilization

Adopt single shaped stretched stainless steel body with special technology applied to the surface to form a brightness and compact protection. You can enjoy the brightness appraisal and clean space of your machine and do not need to worry about the annoy rust anymore.






Tray Rack

The revolving tray rack can make the space available for 3-5 trays to be put with the antisepsis substances.




System Of The Printing

Built-in temperature sensing printing can make the sterilization procedures more visible and easier to manage.



Top-designed Reservoir

Open seservoir, convenient for water-refilling and cleanning The reservoir is enliarged, making it avaiable for 20 cycles use









Quick Release Coupling

The two quick release coupling in the front make the drainage and watering easy.









Control System

The way of sterilization by pressurized steam is recognized as the most effectively way by international authorization. Through the in- transparency control of computer can avoid the damage caused by the heavy equipment in the procedure of sterilization





 Instruction of the Operational Mode:



Pre-set procedure

Tem
()

Pressure
(bar)

Time of sterilization
(Min)

Working total time (Min)

Loading

Maximum loading
(kg)

1

Prepare Vacuum three times
134 Porous

134

2.1

4

35~45

Un-packed multi-loop equipment

1.00

Packed textile

0.65

One-layer packing solid or vacancy substances

3.00

Double-layer packing solid or vacancy substances

1.50

2

Prepare Vacuum three times
121 Porous

121

1.0

20

50~60

Un-packed multi-loop equipment

1.00

Packed textile

0.65

One-layer packing solid or vacancy substances

3.00

Double-layer packing solid or vacancy substances

1.50

3

Prepare Vacuum one times
134 Hollow

134

2.1

4

25~35

Un-packed half-solid equipment

6.00

4

Prepare Vacuum one times
134 Solid

134

2.1

4

20~30

Un-packed solid equipment

6.00

5

Prepare Vacuum one times
134 Solid

121

1.0

20

35~45

Un-packed solid equipment

6.00

6

Customer definition

105-134



4-40







7

Prepare Vacuum three times
134 Prion

134

2.1

18

45~60

Un-packed multi-loop equipment

1.00

Packed textile

0.65

One-layer packing solid or vacancy substances

3.00

Double-layer packing solid or vacancy substances

1.50

8

Prepare Vacuum three times
Customer definition

126
(105-134)

-

12
(1-40)

Dryness time 15 minutes(3-25min)

-

9*

B-D Test

Applied to Performance Test

10*

Leak Test

Applied to Performance Test





Parameters:



Voltage Rating and Frequency

AC220V, 50~60Hz

Input Power

1800W

Sterilization Temperature

121℃/134℃ (Customer Definition 105℃ ~ 134℃)

Operating Environment Temperature

5℃~40℃

Room of Sterilization(Diameter×Depth)

250mm×350mm

Volume

17 L
