OT182 Semi-automatic Alginate Mixer Used for Impression Material

1.Introduction

OT182  Mixer, it is our company’s second generation alginate mixer, the first semi-automatic alginate mixer on the domestic market. This equipment is used for making false teeth; it replaces the handwork of mixing the Impression Material. It has characteristics of labor-saving, fast, well mix and less bubble.
2. Parameters
1.Power supply: AC 110V, 60 Hz
                        AC 220V, 50 Hz

2.Speed: low-speed: 120rpm, high-speed: 250rpm.
3.Regular alarm: After mixing 20S it will have beep sound and alarm light will flash to warn user using the alginate immediately, or it dries.
4.Stop working if overload: When the motor overloaded, the unit will stop working automatically after 3S, press Start key or step on foot control to working again.
5. With simple foot control to start, and change low speed to high speed
6. Gross weight: 2.0 KG
7. Size: 280*230*230 mm

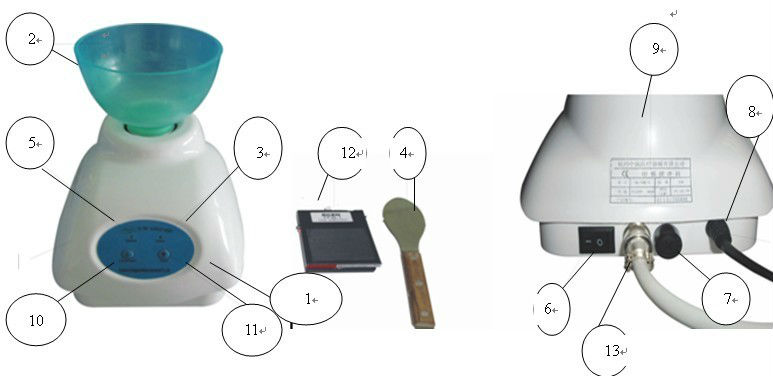

. Names Of Parts And Their Operations:




1. Shell 2. Mixing bowl   3. Power supply Indicator light   4. Spatula 5. Warning indicator light   6. Power switch       7. Fuse   8. Power cord 9. Nameplate 10. Start/Set button (low speed/high speed change)   11.Stop button 12.Foot switch   13. Foot switch connector

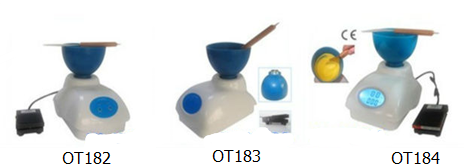

Comprehensive Performance Comparison
