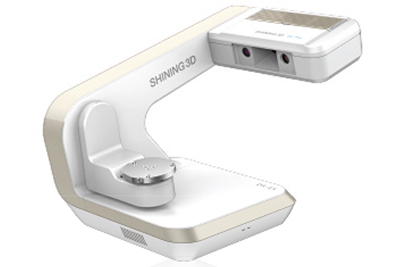

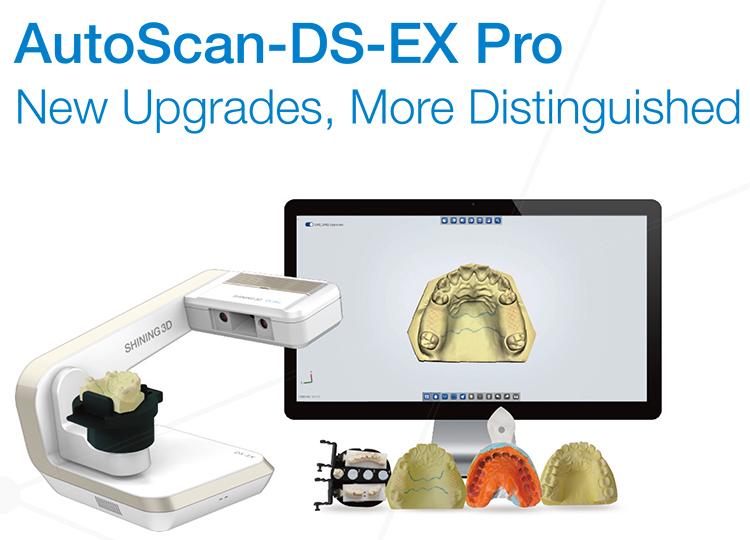

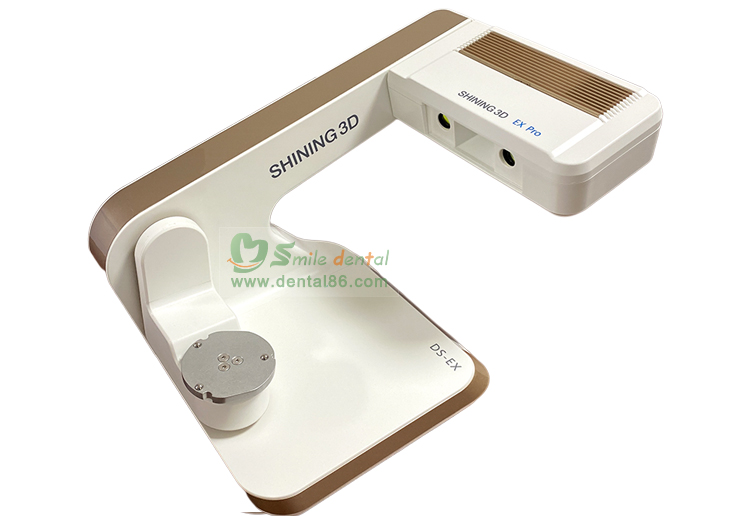

DSEX PRO Dental AutoScan

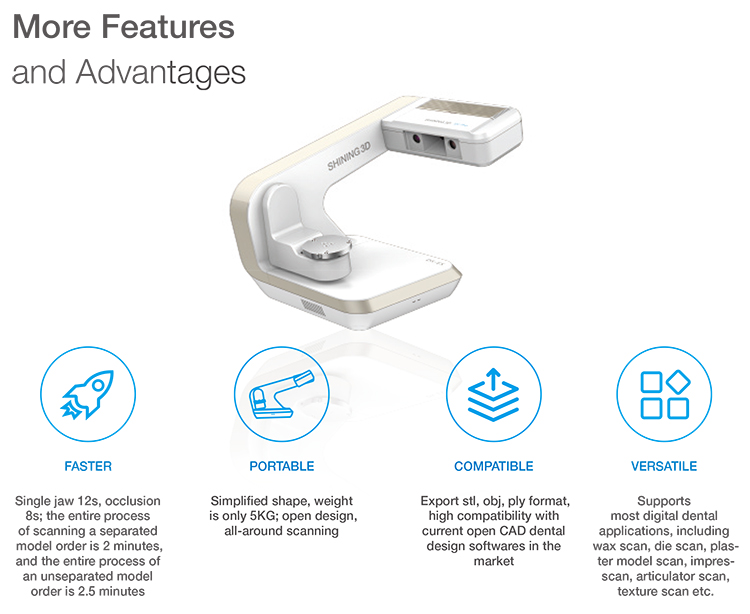

EVEN FASTER SCAN SPEED
With increased scan speed, a single jaw scan can be finished in 12 seconds. The entire process of a separate-die order can be completed within 2 minutes and a non-separated-die order within 2.5 minutes.

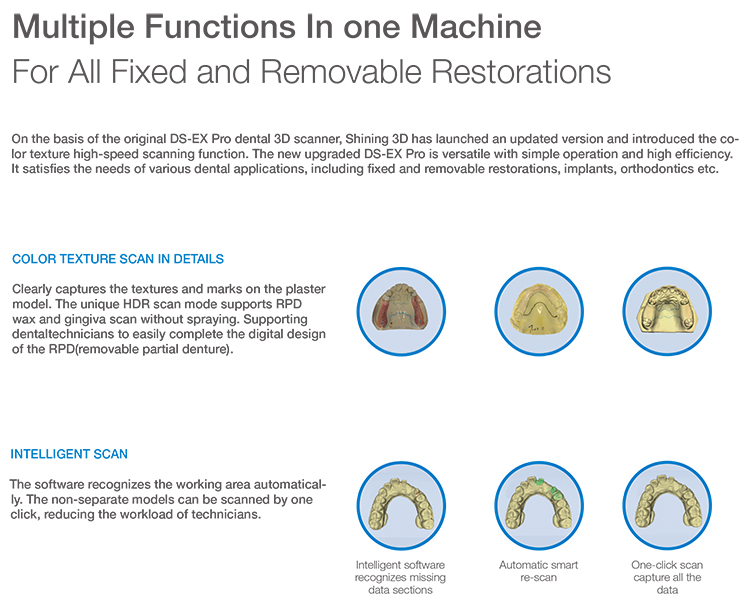

INTELLIGENT ADD-SCAN
When it comes to gaps, the AutoScan-DS-EX Pro can compute an optimized scan path and rescan to fill the unscanned holes automatically. Users don’t have to rescan manually.
OPTIMIZED NON-SEPARATED MODEL SCAN
Intelligent path planning for non-separated model scan ensures optimum scan results and higher efficiency.

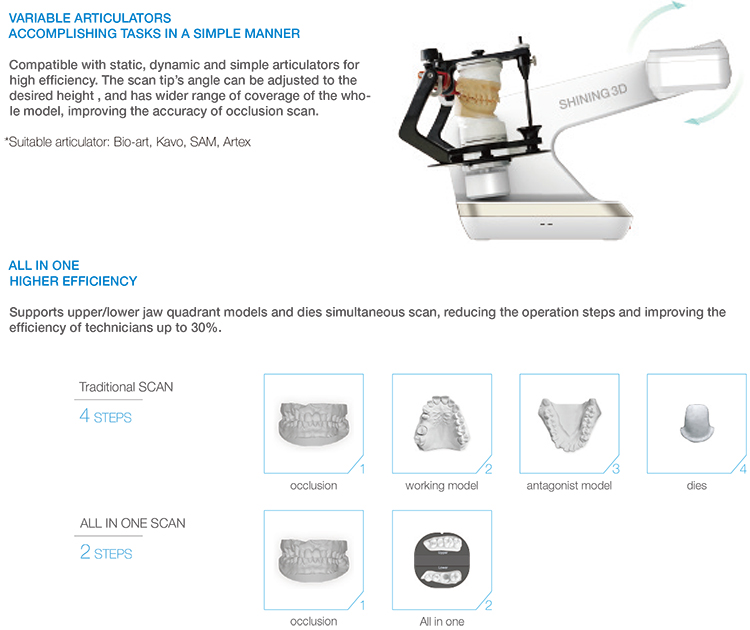

FULL RANGE OF ARTICULATORS
The AutoScan-DS-EX Pro supports scanning multiple types of articulators on the market.
STATIC & DYNAMIC ARTICULATOR SCAN
Apart from the existing static scanning mode, a new dynamic scanning mode is now available to capture the full relationship of both jaws and further improve precision of occlusion.

This added feature is easy to operate and will result in greater efficiency.

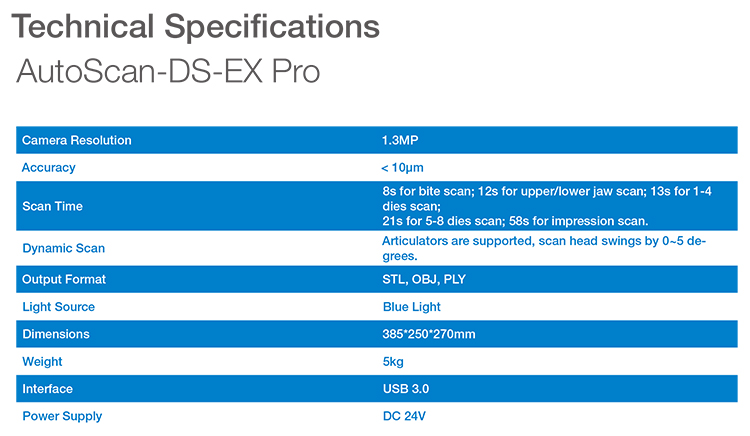

TECHNICAL SPECIFICATIONS

Camera resolution :1.3 MP

Accuracy ≤ 0.01mm
Scan time :8 s for bite scan; 12 s for upper / lower jaw scan; 13 s for 1-4 dies scan; 21 s for 5-8 dies scan; 58 s for impression scan
Output format :STL / OBJ / PLY
Light source :Blue light
Dimensions: 260x270x420 mm
Weight :5 kg
Interface:USB 3.0
Power supply:DC24 V

 Computer configuration requirements:
--System: win7, win10 (64-bit only)
--Port:The scanner needs a USB 3.0 port; the scanner dongle needs a USB port, regardless of porttype
--Graphics card: discrete graphics card, NVIDIA GTX640 or GTX750 and above
--CPU: Intel R CoreTM i5 ( i5 or higher)
--Memory: 8G and above
--Turn off the firewall
