Motors - AL28
ENDO MATE

AL28

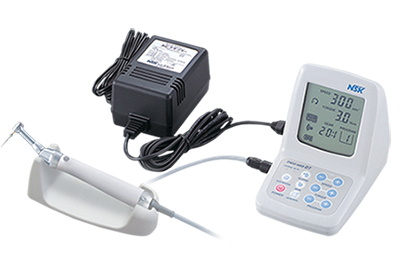

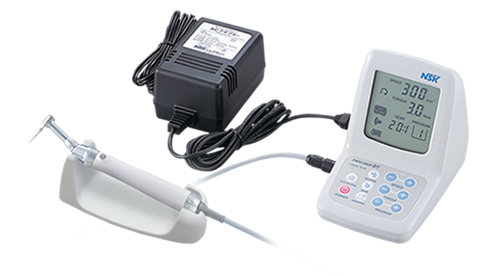

NSK ENDO-MATE DT



AL28 ENDO MATE

Smart and Portable
Ultra-slim & Compact Handpiece with Torque Control & Auto Reverse

ENDO-MATE DT is smart enough to memorise exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers. Its auto-reverse features 3 working modes - autoreverse on, auto-stop, auto-reverse off. The motor reacts when load reaches the preset level of torque. With on-off switch, it offers flexibility of pedal-free operation (optional foot control unit available), while providing convenience of full portability with two-way power supply, either AC or battery driven.

Technology & Function

AL28 ENDO-MATE DT AL28 ENDO-MATE DT

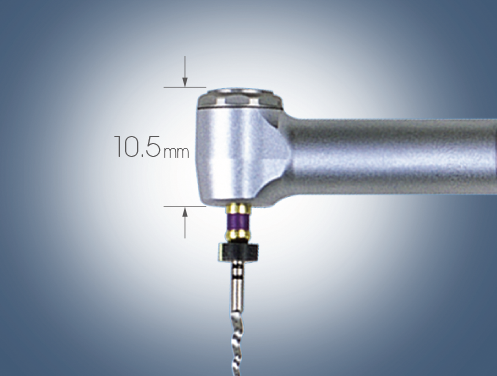

Push Type Ultra Miniature Head
Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of reatment spots.

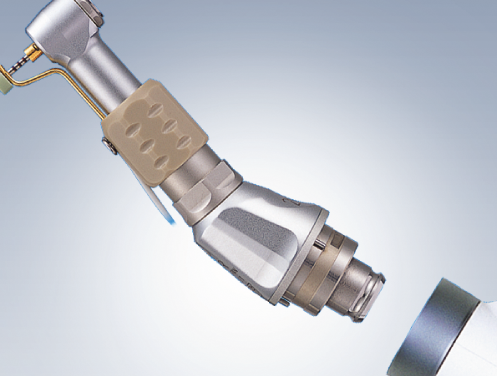

Quick Joint
Quick release system allows for easy head exchange. Compact head allows excellent visibility of the treatment spot.
 ENDO-MATE DT  ENDO-MATE DT

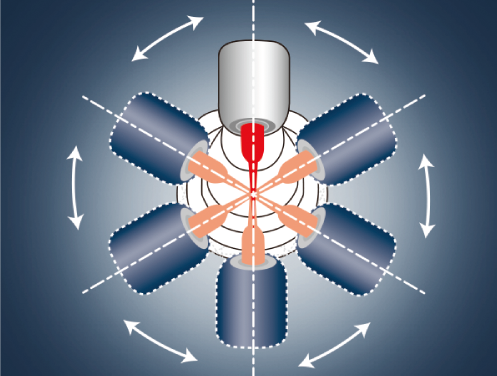

6 Head Angles
Depending on the position of treatment site, the head angle can be adjusted to the best angle.

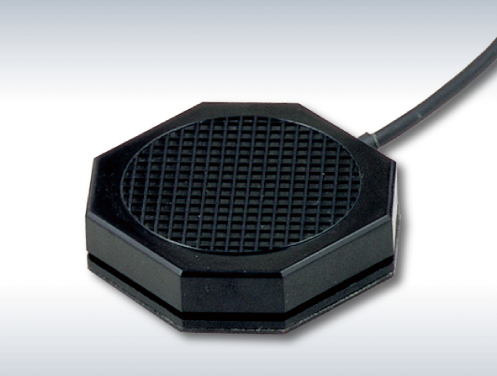

Foot Pedal
Micromotor On / Off operation is activated via the convenient finger switch located on the micromotor. An Optional foot control is available.
ENDO-MATE DT ENDO-MATE DT

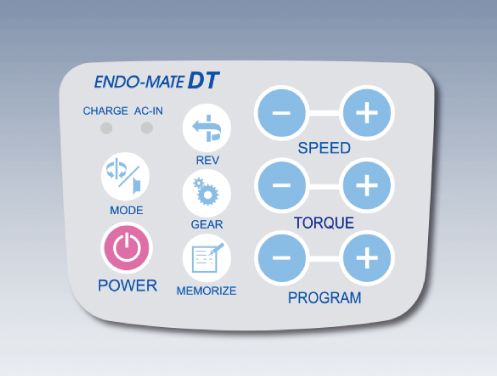

Flat Panel
Flat control panel allows simple user friendly operation.

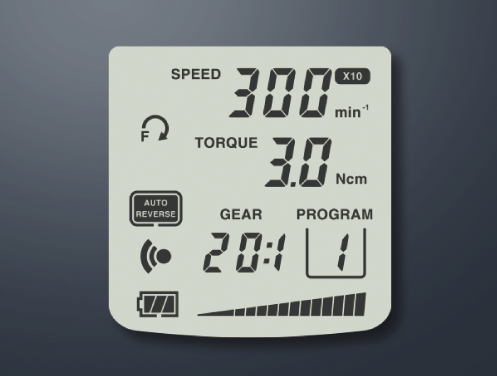

A Liquid Crystal Display
Wide screen provides high visibility.

ENDO-MATE DT

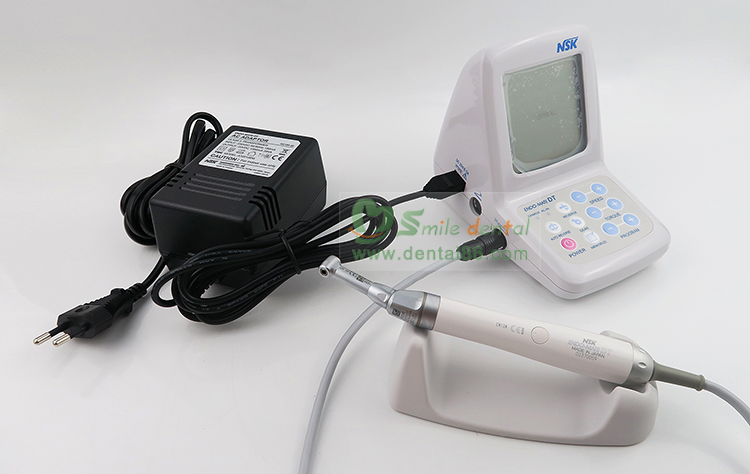

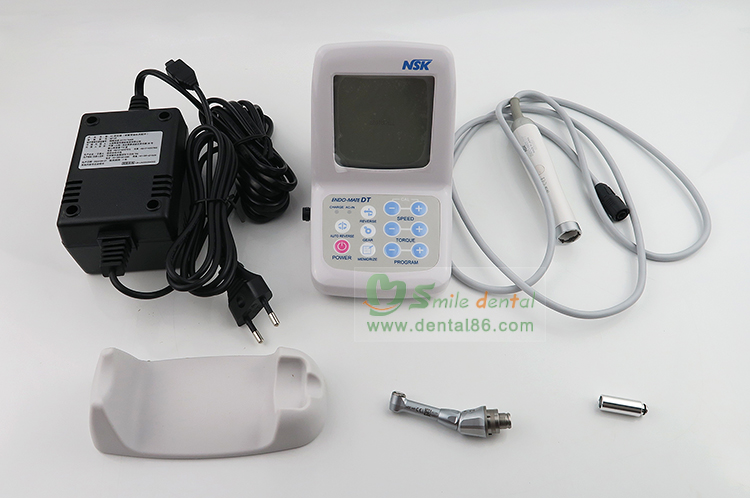

Contents - ENDO-MATE DT with 20:1 Head
Control Unit Motor and Cord MP-F20R Head (20:1) Handpiece Stand AC Adaptor

Specifications
Power Supply:60 Hz and Battery pack
Number of Programs:9
Max Torque:7 Ncm (When Using 20:1 Head)
Speed Range:100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads)
Charge / Continuous Use:5 h / 2 h (Depending on Workload)
Dimensions:W 92 x D 148 x H 124 mm
Weight:Unit 456 g / Motor Handpiece & Cord 92 g
