ET01B NiCr  Alloy for fixed metal-to-ceramic with Beryllium

Description:

Ni:79%
Cr:13%
MO:5%
Be:1.7%
Melting range: 1240°C~ 1290°C
Yield strength: 560 Mpa
Elongation: 12%
Density: 8.1/cm2
Coefficient of liner expansion:13.8x10*K"(25 to 500°C)

Shape：VB
Diameter:12.5mm  Height：4mm
Diameter:12.5mm  Height：7mm

The muffle moves up and down

Multi-display screens

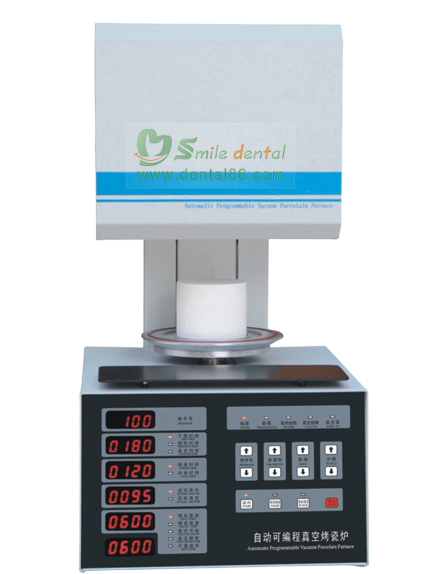

SLG3 Porcelain Furnace

●All-ceramic and metal-porcelain functions
●Max temperature: 1305℃
●Excellent sealing performance
●Vacuum is set by time or temperature
●Max working vacuum: -97Kpa
●Temperature calibration by keypad; Time and room temperature display in real time;
●300 programs (max) are set freely by user;
●English and Chinese operation panel;
●Classical 3G: the muffle moves up and down; Multi- -display screens;

N.W:28Kg
SIZE:320X420X510mm

ET03B NiCr Alloy for Framework and Partial with Beryllium

Description:

Ni:72%
Cr:14%
Mo:6%
Be:1.8%
Melting range: 1240°C~1280°C
Yield strength: 520MPa
Elongation:6%
Elastic Modulus: 200Gpa
Vickers hardness: 360HV10

Size:Diameter 14mm, height 10mm
