- US72
Woodpecker UDS-N2

US72



Key Feature

1. Detachable handpiece autoclavable.
2. Automatic frequency tracking.

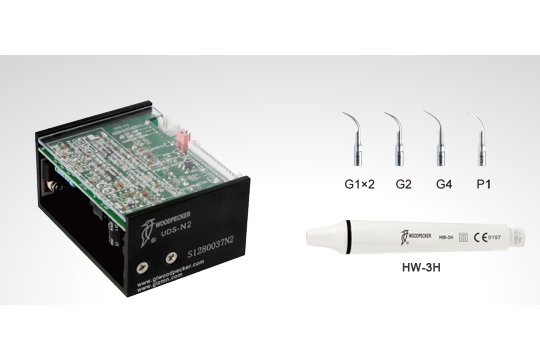

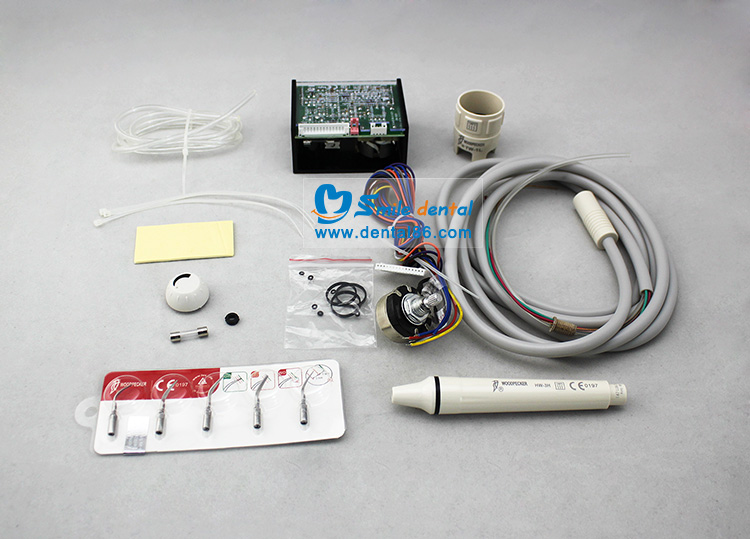

UDS-N2 Packing List
Main unit × 1, Detachable handpiece × 1, Cable× 1, Scaling tip G1 × 2,
Scaling tip G2 × 1, Scaling tip G4 × 1, Scaling tip P1 × 1, Torque wrench × 1,
Water pipe × 1, Potentiometer knob ×1, Potentiometer and electronic pipe × 1,
Cutting sleeve(for handpiece) × 1, Waterproof "O" ring × 4, Handpiece decorative ring × 1,
Instrument manual × 1, Qualified certificate × 1, Transformer(optional)× 1,
Warranty card × 1, Packing list × 1.



Technical Details

Main unit input     24V~    50Hz/60Hz   1.3A
Output power       3W ~ 20W
Frequency           28kHz ± 3kHz
Water pressure    0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
Main unit weight   0.2kg
Dimensions          74mm×56mm×38mm

Woodpecker UDS-N2

Woodpecker UDS-N2

Woodpecker UDS-N2

Woodpecker UDS-N2
