- SDT-XR44
Digital Intraoral Sensor

SDT-XR44
1. DS530
2. High-efficieny
3. The airline domain dedicated sensor
4. Compatible with different brands X-ray machine
5. Waterproof
6. Real solution is 16-20lp/mm

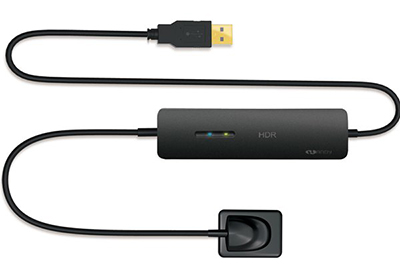

SDT-XR44 Digital Intraoral Sensor

Specification Parameters:



Specification





DS530





Chip Type





CMOS APS





Fiber Optical Plate





Yes





Scintillator





GOS/CsI





Dimension





27.5 x 38.5mm





Active Area





22.5 x 30mm





Pixel Size





675mm²





18.5μm





Active Pixels





1.9M (1600*1200)





Resolution





Theoretical value: 27lp/mm





Operation System





Actual value: 12-14lp/mm (GOS) 16-20lp/mm(CsI





Windows2000/xp/win7/win8/win8.1/win10 (32bit&64bit)









1.Multi-languages with 10 types.
2.Operation system: desk top & laptop (Windows 2000, XP, Win 7, Win 8,Win 10)
3.Twain driver: our RVG compatible with KODAK, SIRONA, SCHICK, etc.
4.Power :USB 2.0 interface
5.Excellent quality: our sensor material imported from Germany and Japan , best quality standards.
6.New APS CMOS sensor with long life time (400,000 times).
7.Warranty for 1year

Packing list:
1. Manual 1pcs
2. CD 1pcs
3. X-Ray Sensor and Control Box 1pcs
4. Holder 1pcs
5. Sleeves 1 bag
Packing information:
GW:2.0kgs/set;
Carton size:47*38*14cm

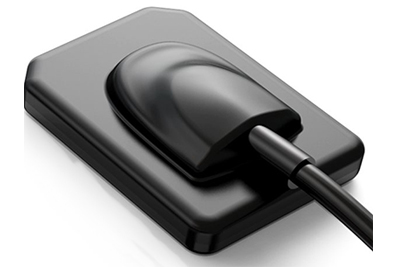

Handy Intraoral sensor DS530

Further EscalatedPerformance
Digital DentalX-Ray imaging system
DS530 have more fashionable and lighter appearance. Moreover,Csl scintillator could be an option as per customer needs which has broader spectral dynamic range, higher X-ray conversion efficiency and better details showing ability.
Digital Dental X-Ray Imaging system
Integrated with R&D and production by handy, dental X-ray imaging system DS530

High Efficiency=High Profitability
Only within a few seconds, image will be shown automatically, accomplish the high time-performance ratio at the greatest extent in diagnosis.
APS CMOS Sensor, The Airline domain dedicated Sensor, Low expense, Long life time
The long life time APS CMOS Sensor saves about 75% cost than traditional dental film.0.35nm production technology, and 3T, large range> 73Db, achieve the ability to transfer 4 images within a second.
Compatible with different brands X-Ray machine
Suitable for low- dose to high- dose machine
Almost suitable with any brands X-Ray machine,it can increase sense ability,make any low-dose X-ray can be suitable, save cost of X-Ray machine.
Higher technology integration
CMOS chip,add technical grade super fiber plate, high efficiency and definition X- Ray transfer advanced technology restore the original clear tooth, make the image clear and sense, you can even find the smallest root canal easily.
Large active surface, the size 1 active surface is 660mm²
According To Statistics: The global average length of molar is 22mm. We designed
ergonomics high quality sensor based on the realistic needs, while other company only provide 20mm, do you know how much the difference is?
You should choose display area > 22mm sensor!
High resolution for details
Suitable to the low x-ray dose machine, For the smallest flaw and root apex infection
diagnose you need high resolution contrast and high definition image, the real solution is 16~201p/mm
Can be immersed in disinfection liquid
Seamless suture sensor, tested by enginner many times, IPX7 waterproof, immersed by liquid, thorough disinfection , avoiding second cross infection
The only Sensor in China can replace the cable
Use high anti- tear Pu as the cover, easy to wash, flexible to bend, slender copper wire, million bend tests, really durable to use.
