- SS24-3H
Ultrasonic Cleaner

SS24-3H

Volume3L

With Heating Function

totally made of the stainless steel

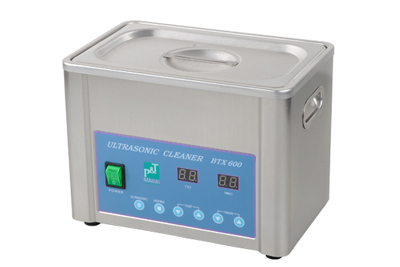

SDT-SS24-3H Ultrasonic Cleaner

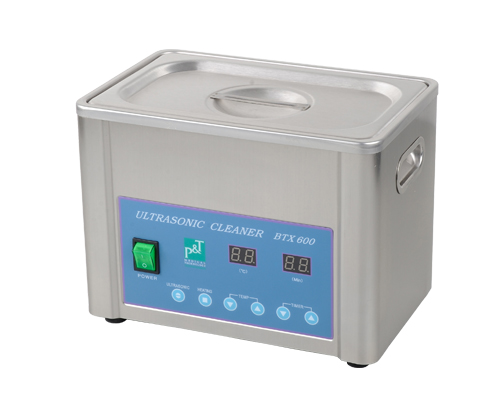

SS24-3H Ultrasonic Cleaner

SS24-3H Ultrasonic Cleaner

Ultrasonic Cleaner
Functional Character:
BTX600 series Ultrasonic Cleaner introduce advanced overseas technology. It could produce the ultrasonic frequency electrical signal through the ultrasonic generator, then transform into the mechanical vibrations of the same frequency by transducer's piezoelectricity inversion effect, intensive forward spread in the way of ultrasonic frequency longitudinal wave at the cleaning liquid. And it produce ten thousands of small bubbles circle "blasting" to clean the goods, form a tiny high pressure bombarding in surfaces, cracks, small holes of the goods to get rid of dirt rapidly, so that achieve the purpose of purification. It could deeply clean the surface of deep hole, blind hole, convex in high efficiency and high precision. It is totally made of the stainless steel, and it has water level automatic alarm system, which could not work without reaching the normal water level.
Application Range:
The machine applies to hospitals, medical schools, research, petroleum, chemical industry, light industry, metallurgy, machinery, transportation and defense industries. As equipment,  instruments, electronic components, circuit boards, semiconductor silicon, the material the electroplated parts, metal pieces, optical lenses and spare parts, audio slider, polyester filters, spinneret, the latex mold, medical equipment, glassware, gems and jewelry, watch components, precision metal pieces, bearing glib manufacture of pumps and mechanical parts and components to reduce the complexity of geometry and clean.

SDT-SS24-3H Ultrasonic Cleaner

Drain valve







There is drain valve in the side whichis easy to drain cleaning liquid.







Parameters:









Volume







3L







Voltage Rating and Frequency







AC220V,5060Hz  AC110V,60Hz







Fuse Tube







F2A250V







Input Power







200W







Heating Power







75W







Time







199Minute







Dimension of Cleaning Slot(L×W×H)







240mm×140mm×110mm







Net weight







5kg











SS24-3H Ultrasonic Cleaner
