- HP11

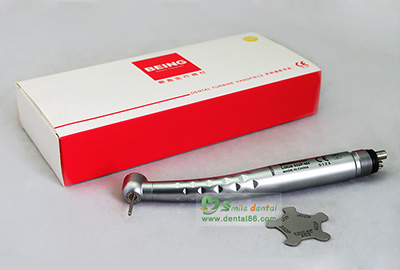

Triple Spray Push Button Air Trubine

HP11

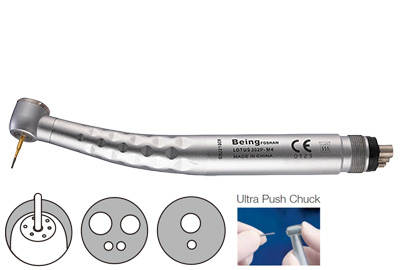

LOTUS 302P Lotus Series High Speed Handpiece
TECHNICAL PARAMETER

DESCRIPTION Triple spray system high speed handpiece, push button type, anti-retraction system
AIR PRESSURE AT THE BACK END OF HP 206~231 KPa (2.1~2.35 kgf/cm2)
AIR PRESSURE AT THE GAUGE IN THE DENTAL UNIT 240-294 KPa (2.45-3.0 kgf/cm2)
WATER PRESSURE 198Kpa (2 kg)
ROTATION SPEED 300,000-320,000 rpm
HEAD HIGHT 13.02 mm
HEAD DIAMETRE φ12.5 mm
CHUCK TYPE Push button
BUR APPLICABLE φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
NOISE ≤70dB

RELEVANT SPARE PARTS

Triple Spray Push Button Air Trubine
302 cartridge

Triple Spray Push Button Air Trubine
302 push button cap

Triple Spray Push Button Air Trubine
Normal spanner

Triple Spray Push Button Air Trubine

Triple Spray Push Button Air Trubine

Triple Spray Push Button Air Trubine

Triple Spray Push Button Air Trubine

Triple Spray Push Button Air Trubine
