dental unit sdt-a - SDT-A520N
Integrated Dental Unit

SDT-A520N

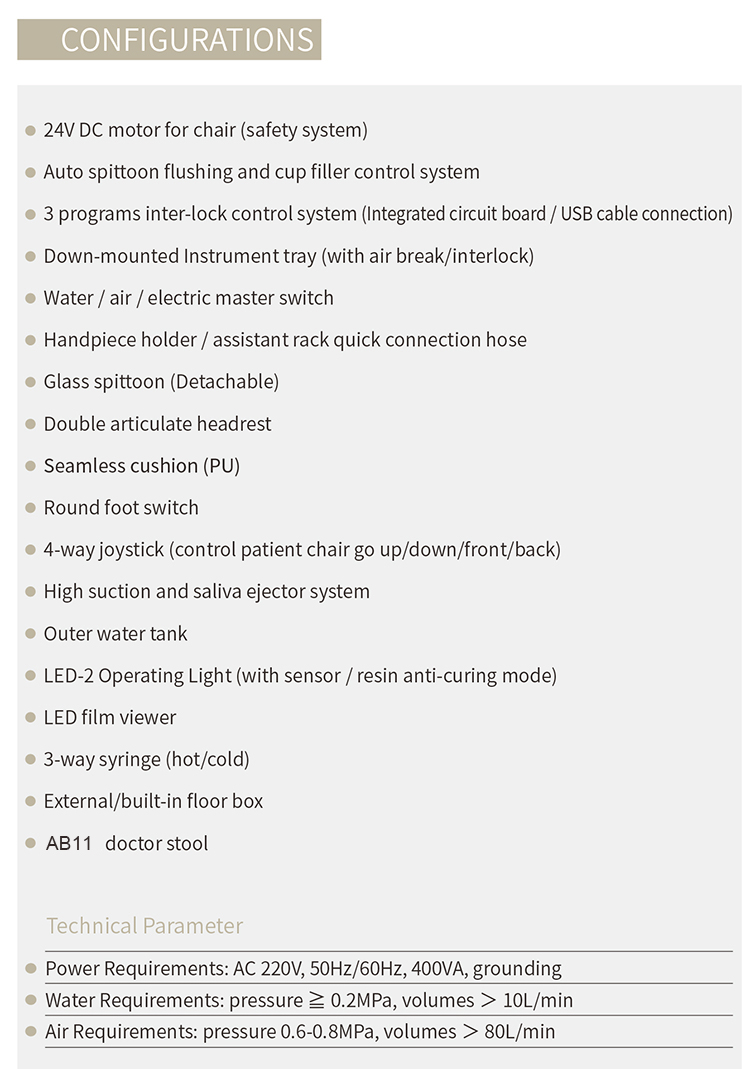

STANDARD CONFIGURATION:

●24V DC motor for chair (safety system): 1 set

●Auto spittoon flushing & cup filler control system: 1 set

●3 programs inter-lock control system: 1 set

●Instrument tray with air break(down-mounted): 1 set

●Build-in floor box with main switch: 1 set

●Rotatable handpiece holder: 1 sets

●Assistant system: 1 sets

●Glass spittoon(Removable): 1 set

●Double articulate headrest: 1 set

●Seamless cushion(PU): 1 set

●Round foot switch: 1 set

●4-way joystick: 1 set

●High suction & saliva ejector system: 1 set

●Outer water tank: 1 set

●Imported medical grade water/air tubing: 1 set

●USB connector: 1 set

●LED-2 operating light with sensor: 1 set

●LED film viewer: 1 set

●3-way syringe(hot/cold): 2 set

●Build-in floor box: 1 set

●SDT-301 doctor stool: 1 set

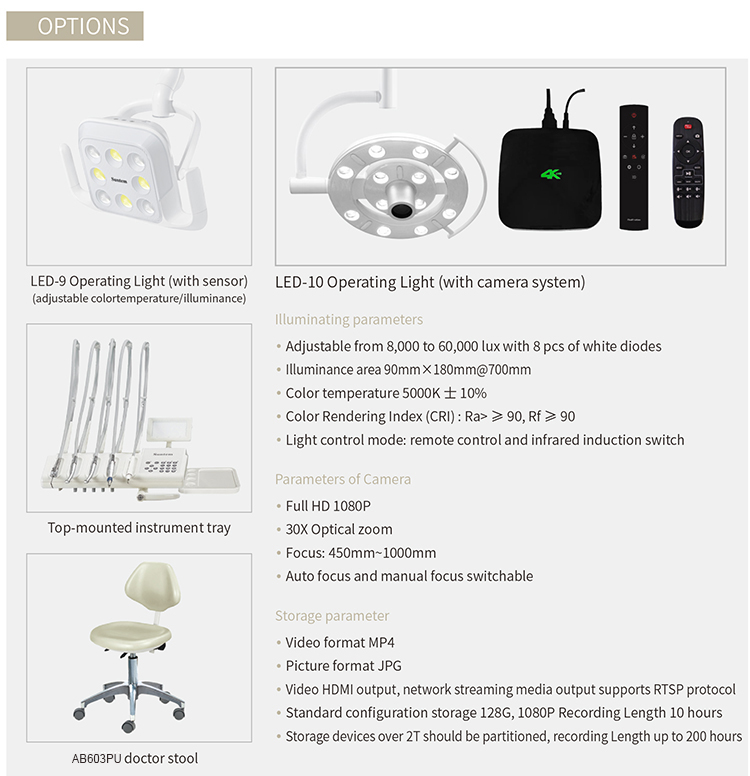

OPTION:

●External junction box

●SDT-603 doctor stool

●Sewed eco-leather cushion

●Automatic cup filler with sensor

●TPC Multi-media endoscope image system

●Imported/domestic 4 hole high speed handpiece

●Imported/domestic 4 hole low speed handpiece

●TPC LED curing light

●ART magnetostriction scaler(built-in)


TECHNICAL PARAMETERS:

●Power/voltage: a.c.220 V-230 V/50 Hz

●Water pressure: 0.2-0.4 MPa/2.0-4.0 bar

●Air pressure: 0.55-0.8 MPa/5.5-8.0 bar

●Air output volumn: 55 L/min









A520N Integrated Dental Unit



Available colors

A520N Integrated Dental Unit

A520N Integrated Dental Unit

A520N Integrated Dental Unit

A520N Integrated Dental Unit

A520N Integrated Dental Unit

A520N Integrated Dental Unit

A520N Integrated Dental Unit
