- AX-4-10B
Burnout Furnace (Intelligent)

AX-4-10B



Item

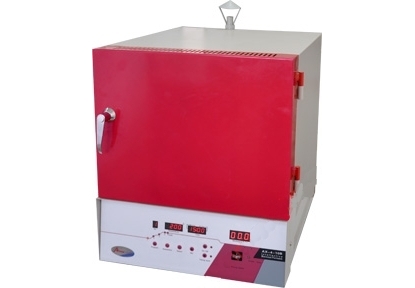

AX-4-10B Burnout Furnace (Intelligent)

Certification
ISO9001:2000 Approved

Purpose
This unit is used for the wax elimination of casting rings and preheating the crucible in dental laboratory.

Description
The AX-4-10B Burnout Furnace was developed in 2008. Comparing to conventional materials, the ceramic fiber furnace walls allows quick heat rise and cooling, only 15 minutes is needed for the temperature to reach 950°C. The furnace door is made of light-weight refractory materials. It also features automatic control system, smooth door movement and excellent thermal insulation performance. The automatic control system of the fan ensures a clean working environment.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 4,000W
Temperature Rating: 950℃
Heating Elements: Ceramic Fiber
Capacity: Large Casting Rings x 7 or Large Casting Rings x 4 and Small Casting Rings x 4
Chamber Size: 12 × 30 × 20cm (H W D)
Dimensions: 70cm x 64cm x 47cm (H W D)
Shipping Dimensions: 74cm x 72cm x 55cm (H W D)
Weight: 65kg


Parts Included
Machine×1
Manual×1
Thermocouple×1
Thermocouple Wire×1
