Item

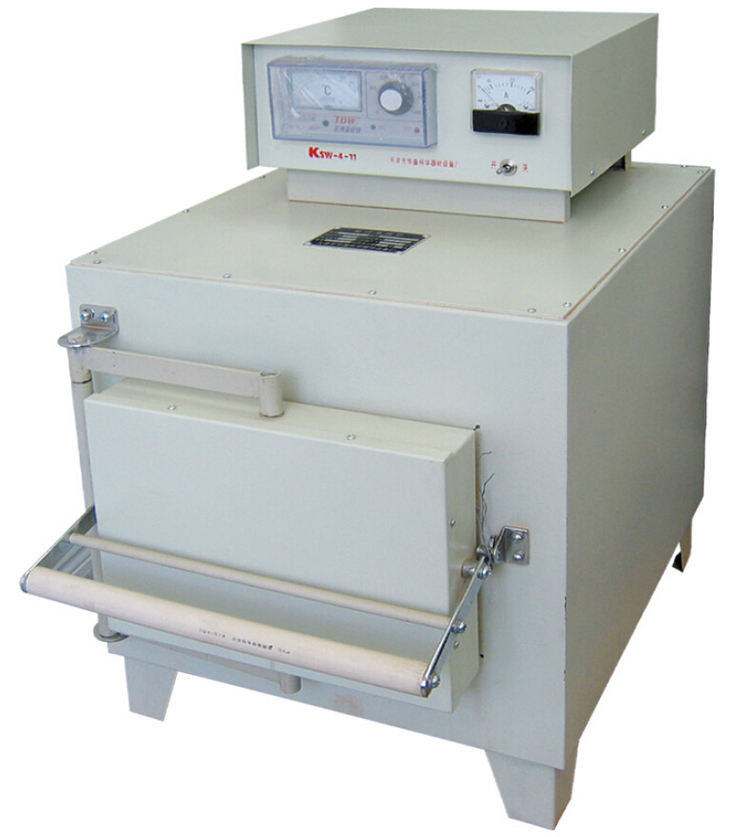

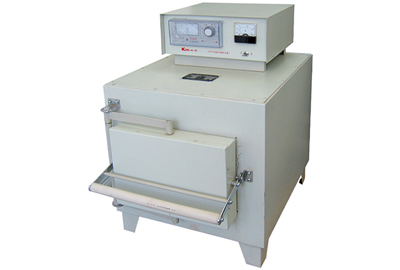

AX-4-10 Burnout Furnace (Manual)

Certification
ISO9001:2000 Approved

Purpose
This unit is used for the wax elimination of casting rings and preheating the crucible in dental laboratory.

Description
The AX-4-10 Burnout Furnace has all the basic functions. The refractory brick furnace wall is excellent for reducing mechanical deterioration and chemical corrosion. It features low maintenance and low price.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 4000W
Temperature Rating: 1000℃
Chamber Materials: Fire Brick
Capacity: Large Casting Rings x 7 or Large Casting Rings x 4 and Small Casting Rings x 4
Chamber Size: 12 × 30 × 20cm (H W D)
Dimensions: 71cm x 75cm x 46cm (H W D)
Shipping Dimensions: 88cm x 83cm x 54cm (H W D)
Weight: 120kg

Parts Included
Machine×1
Manual×1
Thermocouple×1
Thermocouple Wire×1
